Flow Controllers
Push In Type Compress Type
  CTFCUN  Elbow
ˇiSwivelˇj
Tube (Metric)

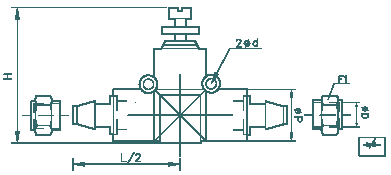

Model D P F1 L/2 H d
CTFCUN04 4 12 8 22.9 34.7

4.3

CTFCUN06 6 14 10 25.6 38.1
CTFCUN08 8 16 12

29.1

46.5
CTFCUN10 10 21 14 34.6 48.8
CTFCUN12 12 21 17 35.5 48.9
Tube (Inch)
Model D P F1 L/2 H d
CTFCUN04 5/32 12 8 22.9 34.7 4.3
CTFCUN07 1/4 14 10 25.6 38.1
CTFCUN08 5/16 16 12

29.1

46.5
CTFCUN09 3/8 21 14 34.6 48.8
CTFCUN13 1/2 21 17 35.5 48.9
