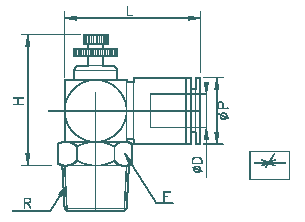

JDFC Elbow
|
 |
 |
| ˇiSwivelˇj |
|
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
| JDFC04M5 |
4 |
M5x0.8 |
8 |
10 |
23 |
30 |
| JDFC0401 |
1/8 |
10 |
31 |
| JDFC0402 |
1/4 |
14 |
| JDFC06M5 |
6 |
M5x0.8 |
8 |
12 |
23.5 |
30 |
| JDFC0601 |
1/8 |
12 |
14 |
26.5 |
34 |
| JDFC0602 |
1/4 |
14 |
| JDFC0603 |
3/8 |
17 |
30 |
38 |
| JDFC0604 |
1/2 |
21 |
| JDFC0801 |
8 |
1/8 |
14 |
31 |
38 |
| JDFC0802 |
1/4 |
| JDFC0803 |
3/8 |
17 |
| JDFC0804 |
1/2 |
21 |
| JDFC1001 |
10 |
1/8 |
19 |
19 |
36 |
46 |
| JDFC1002 |
1/4 |
| JDFC1003 |
3/8 |
| JDFC1004 |
1/2 |
21 |
| JDFC1202 |
12 |
1/4 |
19 |
| JDFC1203 |
3/8 |
| JDFC1204 |
1/2 |
21 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
| JDFC041032 |
5/32 |
10-32UNF |
8 |
10 |
23 |
30 |
| JDFC0401N |
1/8 |
10 |
31 |
| JDFC0402N |
1/4 |
14 |
| JDFC071032 |
1/4 |
10-32UNF |
8 |
12 |
23.5 |
30 |
| JDFC0701N |
1/8 |
12 |
14 |
26.5 |
34 |
| JDFC0702N |
1/4 |
14 |
| JDFC0703N |
3/8 |
17 |
30 |
38 |
| JDFC0704N |
1/2 |
21 |
| JDFC0801N |
5/16 |
1/8 |
14 |
31 |
| JDFC0802N |
1/4 |
| JDFC0803N |
3/8 |
17 |
| JDFC0804N |
1/2 |
21 |
| JDFC0901N |
3/8 |
1/8 |
19 |
19 |
36 |
46 |
| JDFC0902N |
1/4 |
| JDFC0903N |
3/8 |
21 |
| JDFC0904N |
1/2 |
| JDFC1302N |
1/2 |
1/4 |
19 |
| JDFC1303N |
3/8 |
| JDFC1304N |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
| JDFC04M5 |
4 |
M5x0.8 |
8 |
10 |
23 |
31 |
| JDFC0401G |
1/8 |
10 |
32 |
| JDFC0402G |
1/4 |
14 |
| JDFC06M5 |
6 |
M5x0.8 |
8 |
12 |
23.5 |
31 |
| JDFC0601G |
1/8 |
12 |
14 |
26.5 |
35 |
| JDFC0602G |
1/4 |
14 |
| JDFC0603G |
3/8 |
17 |
30 |
39 |
| JDFC0604G |
1/2 |
21 |
| JDFC0801G |
8 |
1/8 |
14 |
31 |
| JDFC0802G |
1/4 |
| JDFC0803G |
3/8 |
17 |
| JDFC0804G |
1/2 |
21 |
| CTFC1001G |
10 |
1/8 |
19 |
19 |
36 |
47 |
| JDFC1002G |
1/4 |
| JDFC1003G |
3/8 |
| JDFC1004G |
1/2 |
21 |
| JDFC1202G |
12 |
1/4 |
19 |
| JDFC1203G |
3/8 |
| JDFC1204G |
1/2 |
21 |
|
