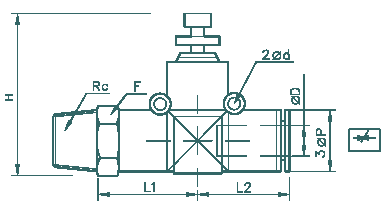

JDFCK
Elbow |
 |
 |
| ˇiSwivelˇj |
|
|
|
| Tube(
m / m ) - Thread( PT ) |
| Model |
 D |
R |
F |
P |
L1 |
L2 |
H |
d |
| JDFCK04M5 |
4 |
M5x0.8 |
10 |
12 |
20.6 |
18.6 |
34.7 |
4.3 |
| JDFCK0401 |
1/8 |
| JDFCK0402 |
1/4 |
14 |
| JDFCK06M5 |
6 |
M5x0.8 |
12 |
14 |
22.4 |
20.4 |
38.1 |
| JDFCK0601 |
1/8 |
| JDFCK0602 |
1/4 |
14 |
| JDFCK0603 |
3/8 |
17 |
| JDFCK0801 |
8 |
1/8 |
14 |
16 |
24.1 |
21.9 |
46.5 |
| JDFCK0802 |
1/4 |
| JDFCK0803 |
3/8 |
17 |
| JDFCK1002 |
10 |
1/4 |
21 |
29.1 |
26.8 |
48.8 |
| JDFCK1003 |
3/8 |
| JDFCK1004 |
1/2 |
21 |
| JDFCK1202 |
12 |
1/4 |
19 |
49.8 |
| JDFCK1203 |
3/8 |
| JDFCK1204 |
1/2 |
21 |
|
| |
| Tube(
Inch ) - Thread( NPT ) |
| Model |
D |
R |
F |
P |
L1 |
L2 |
H |
d |
| JDFCK041032 |
5/32 |
10-32UNF |
10 |
12 |
20.6 |
18.6 |
22.5 |
4.3 |
| JDFCK0401N |
1/8 |
34.7 |
| JDFCK0402N |
1/4 |
14 |
| JDFCK071032 |
1/4 |
10-32UNF |
12 |
14 |
22.4 |
20.4 |
24.5 |
| JDFCK0701N |
1/8 |
38.1 |
| JDFCK0702N |
1/4 |
14 |
| JDFCK0703N |
3/8 |
17 |
| JDFCK0801N |
5/16 |
1/8 |
14 |
16 |
24.1 |
21.9 |
46.5 |
| JDFCK0802N |
1/4 |
| JDFCK0803N |
3/8 |
17 |
| JDFCK0902N |
3/8 |
1/4 |
21 |
29.1 |
26.8 |
48.8 |
| JDFCK0903N |
3/8 |
| JDFCK0904N |
1/2 |
21 |
| JDFCK1302N |
1/2 |
1/4 |
19 |
49.8 |
| JDFCK1303N |
3/8 |
| JDFCK1304N |
1/2 |
21 |
|
| |
| Tube(
m / m ) - Thread(G) |
| Model |
D |
R |
F |
P |
L1 |
L2 |
H |
d |
| JDFCK04M5 |
4 |
M5x0.8 |
10 |
12 |
21.6 |
18.6 |
36.7 |
4.3 |
| JDFCK0401G |
1/8 |
| JDFCK0402G |
1/4 |
14 |
| JDFCK06M5 |
6 |
M5x0.8 |
12 |
14 |
23.4 |
20.4 |
40.1 |
| JDFCK0601G |
1/8 |
| JDFCK0602G |
1/4 |
14 |
| JDFCK0603G |
3/8 |
17 |
| JDFCK0801G |
8 |
1/8 |
14 |
16 |
25.1 |
21.9 |
48.5 |
| JDFCK0802G |
1/4 |
| JDFCK0803G |
3/8 |
17 |
| JDFCK1002G |
10 |
1/4 |
21 |
30.1 |
26.8 |
50.8 |
| JDFCK1003G |
3/8 |
| JDFCK1004G |
1/2 |
21 |
| JDFCK1202G |
12 |
1/4 |
19 |
51.8 |
| JDFCK1203G |
3/8 |
| JDFCK1204G |
1/2 |
21 |
|
