Flow Controllers
Push In Type Compress Type
  JDFCN  Elbow
ˇiSwivelˇj
Tube(Metric)   -  Thread(PT)

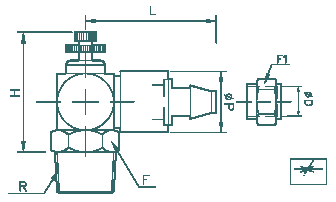

Model D R F F1 P L H
JDFCN04M5 4 M5x0.8 8 8 10 24.3 30
JDFCN0401 1/8 10 31
JDFCN0402 1/4 14
JDFCN06M5 6 M5x0.8 8 10 12 25.7 30
JDFCN0601 1/8 12 14 27.2 34
JDFCN0602 1/4 14
JDFCN0603 3/8 17 28.7 38
JDFCN0604 1/2 21
JDFCN0801 8 1/8 14 12 31.3
JDFCN0802 1/4
JDFCN0803 3/8 17
JDFCN0804 1/2 21
JDFCN1001 10 1/8 19 14 19 36.8 46
JDFCN1002 1/4
JDFCN1003 3/8
JDFCN1004 1/2 21
JDFCN1202 12 1/4 19 17 38
JDFCN1203 3/8
JDFCN1204 1/2 21

Tube(Inch)   -  Thread(NPT)
Model D R F F1 P L H
JDFCN041032 5/32 10-32UNF 8 8 10 24.3 30
JDFCN0401N 1/8 10 31
JDFCN0402N 1/4 14
JDFCN071032 1/4 10-32UNF 8 10 12 25.7 30
JDFCN0701N 1/8 12 14 27.2 34
JDFCN0702N 1/4 14
JDFCN0703N 3/8 17 28.7 38
JDFCN0704N 1/2 21
JDFCN0801N 5/16 1/8 14 12 31.3
JDFCN0802N 1/4
JDFCN0803N 3/8 17
JDFCN0804N 1/2 21
JDFCN0901N 3/8 1/8 19 14 19 36.8 46
JDFCN0902N 1/4
JDFCN0903N 3/8 21
JDFCN0904N 1/2
JDFCN1302N 1/2 1/4 19 17 38
JDFCN1303N 3/8
JDFCN1304N 1/2 21

Tube(Metric)   -  Thread(G)
Model D R F F1 P L H
JDFCN04M5 4 M5x0.8 8 8 10 24.3 31
JDFCN0401G 1/8 10 32
JDFCN0402G 1/4 14
JDFCN06M5 6 M5x0.8 8 10 12 25.7 31
JDFCN0601G 1/8 12 14 27.2 35
JDFCN0602G 1/4 14
JDFCN0603G 3/8 17 28.7 39
JDFCN0604G 1/2 21
JDFCN0801G 8 1/8 14 12 31.3
JDFCN0802G 1/4
JDFCN0803G 3/8 17
JDFCN0804G 1/2 21
JDFCN1001G 10 1/8 19 14 19 36.8 47
JDFCN1002G 1/4
JDFCN1003G 3/8
JDFCN1004G 1/2 21
JDFCN1202G 12 1/4 19 17 38
JDFCN1203G 3/8
JDFCN1204G 1/2 21
