Flow Controllers
Push In Type
Compress Type
JDFCUN
Elbow
ˇiSwivelˇj
Tube (Metric)

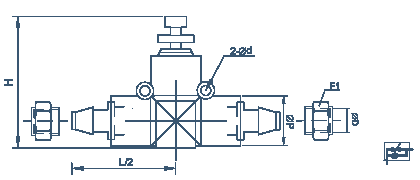

Model
D
P
F1
L/2
H
d
JDFCUN04
4
12
8
22.9
34.7
4.3
JDFCUN06
6
14
10
25.6
38.1
JDFCUN08
8
16
12
29.1
46.5
JDFCUN10
10
21
14
34.6
48.8
JDFCUN12
12
21
17
35.5
48.9
Tube (Inch)
Model
D
P
F1
L/2
H
d
JDFCUN04
5/32
12
8
22.9
34.7
4.3
JDFCUN07
1/4
14
10
25.6
38.1
JDFCUN08
5/16
16
12
29.1
46.5
JDFCUN09
3/8
21
14
34.6
48.8
JDFCUN13
1/2
21
17
35.5
48.9
