Minimal Fittings

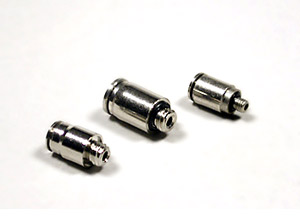

CTOCS
Straight
Tube(Metric)-Thread(PT)
Model
D
R
P
H
F
CTOC03M3
3
M3x0.5
6
12
1
CTOC03M5
M5x0.8
7
14
1
CTOC0301
1/8
10
15
1
CTOC04M3
4
M3x0.5
8
12
2
CTOC04M5
M5x0.8
14
2
CTOC0401
1/8
10
15
2
CTOC05M5
5
M5x0.8
9
17
3
CTOC0501
1/8
19
3
CTOC06M3
6
M3x0.5
10
15
3
CTOC06M5
M5x0.8
17
3
CTOC0601
1/8
19
3
Tube(Inch)-Thread(NPT)
Model
D
R
P
H
F
CTOC32M3
1/8
M3x0.5
6
12
1
CTOC32M5
10-32UNF
6
14
1
CTOC3201N
1/8
10
15
1
CTOC04M3
5/32
M3x0.5
8
12
2
CTOC041032
10-32UNF
14
2
CTOC0401N
1/8
10
15
2
CTOC051032
3/16
10-32UNF
9
17
3
CTOC0501N
1/8
19
3
CTOC07M3
1/4
M3x0.5
10
15
3
CTOC071032
10-32UNF
17
3
CTOC0701N
1/8
19
3
Tube(Metric)-Thread(G)
Model
D
R
P
H
F
CTOC03M3
3
M3x0.5
6
12
1
CTOC03M5
M5x0.8
7
14
1
CTOC0301G
1/8
10
15
1
CTOC04M3
4
M3x0.5
8
12
2
CTOC04M5
M5x0.8
14
2
CTOC0401G
1/8
10
15
2
CTOC05M5
5
M5x0.8
9
17
3
CTOC0501G
1/8
19
3
CTOC06M3
6
M3x0.5
10
15
3
CTOC06M5
M5x0.8
17
3
CTOC0601G
1/8
19
3
