Minimal Fittings
CTOLCS
Elbow
ˇiSwivelˇj

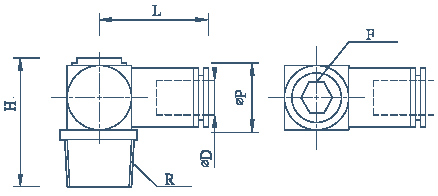

Tube(Metric) - Thread(PT)
Style
D
R
F
P
L
H
CTOL03M3C
3
M5x0.5
2
6
11.5
14.5
CTOL03M5C
M5x0.8
16.5
CTOL0301C
1/8
18.5
CTOL04M3C
4
M3x0.5
3
8
14
14.5
CTOL04M5C
M5x0.8
16.5
CTOL0401C
1/8
18.5
CTOL05M5C
5
M5x0.8
3
9
19
19
CTOL0501CS
1/8
21
CTOL06M3C
6
M3x0.5
3
10
19
17
CTOL06M5C
M5x0.8
19
CTOL0601CS
1/8
21
Tube(Incg) - Thread(NPT)
Style
D
R
F
P
L
H
CTOL32M3C
1/8
M5x0.5
2
8
19
14.5
CTOL321032C
10-32UNF
16.5
CTOL3201CN
1/8
18.5
CTOL04M3C
5/32
M3x0.5
3
10
21
14.5
CTOL041032C
10-32UNF
16.5
CTOL0401CN
1/8
18.5
CTOL05M5C
3/16
10-32UNF
3
9
19
19
CTOL0501CSN
1/8
21
CTOL07M3C
1/4
M3x0.5
3
12
21
17
CTOL071032C
10-32UNF
19
CTOL0701CSN
1/8
21
Tube(Metric) - Thread(G)
Style
D
R
F
P
L
H
CTOL03M3C
3
M5x0.5
2
8
19
14.5
CTOL03M5C
M5x0.8
16.5
CTOL0301CG
1/8
18.5
CTOL04M3C
4
M3x0.5
3
10
21
14.5
CTOL04M5C
M5x0.8
16.5
CTOL0401CG
1/8
18.5
CTOL05M5C
5
M5x0.8
3
9
19
19
CTOL0501CSG
1/8
21
CTOL06M3C
6
M3x0.5
3
12
21
17
CTOL06M5C
M5x0.8
19
CTOL0601CSG
1/8
21
