Minimal Fittings
CTSCCS

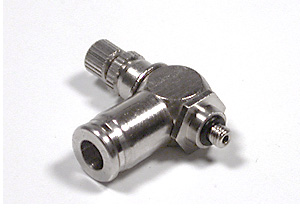

Speed Controller
ˇiSwivelˇj
Tube(Metric) - Thread(PT)

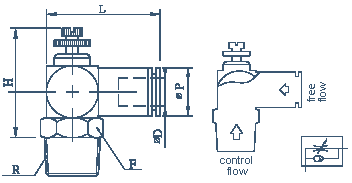

Style
D
R
F
P
L
H
CTSC03M3C
3
M5x0.5
6
6
15
20.5
CTSC03M5C
M5x0.8
6
CTSC0301C
1/8
6
17
CTSC04M3C
4
M3x0.5
6
8
18
20.5
CTSC04M5C
M5x0.8
6
CTSC0401C
1/8
6
17
CTSC06M3C
6
M3x0.5
6
10
24
17
CTSC06M5C
M5x0.8
6
17
CTSC0601SC
1/8
6
17
Tube(Inch) - Thread(NPT)
Style
D
R
F
P
L
H
CTSC32M3C
1/8
M5x0.5
6
6
15
20.5
CTSC321032C
10-32UNF
6
CTSC3201CN
1/8
6
17
CTSC04M3C
5/32
M3x0.5
6
8
18
20.5
CTSC041032C
10-32UNF
6
CTSC0401CN
1/8
6
17
CTSC07M3C
1/4
M3x0.5
6
10
24
17
CTSC071032C
10-32UNF
6
17
CTSC0701SCN
1/8
6
17
Tube(Metric) - Thread(G)
Style
D
R
F
P
L
H
CTSC03M3C
3
M5x0.5
6
6
15
20.5
CTSC03M5C
M5x0.8
6
CTSC0301CG
1/8
6
23.5
CTSC04M3C
4
M3x0.5
6
8
18
20.5
CTSC04M5C
M5x0.8
6
CTSC0401CG
1/8
6
23.5
CTSC06M3C
6
M3x0.5
6
10
24
30
CTSC06M5C
M5x0.8
6
32
CTSC0601SCG
1/8
6
34
