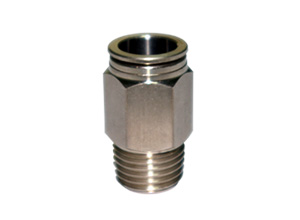

Stainless Steel Fittings
Push In Type
S16C
Straight
Tube (Metric) Thread(PT)
Model
D
R
F
H
S16C04M5
4
M5x0.8
8
17
S16C0401
1/8
10
9.5
S16C0402
1/4
14
10.5
S16C06M5
6
M5x0.8
10
17
S16C0601
1/8
13
S16C0602
1/4
14
9.5
S16C0603
3/8
17
S16C0801
8
1/8
12
16
S16C0802
1/4
14
13
S16C0803
3/8
17
10
S16C0804
1/2
21
10.5
S16C1001
10
1/8
14
18
S16C1002
1/4
S16C1003
3/8
17
13.5
S16C1004
1/2
21
10.5
S16C1202
12
1/4
17
18
S16C1203
3/8
13.5
S16C1204
1/2
21
10.5
Tube (Inch) Thread(NPT)
Model
D
R
F
H
S16C041032
5/32
10-32UNF
8
17
S16C0401N
1/8
10
9.5
S16C0402N
1/4
14
10.5
S16C071032
1/4
10-32UNF
10
17
S16C0701N
1/8
13
S16C0702N
1/4
14
9.5
S16C0703N
3/8
17
S16C0801N
5/16
1/8
12
16
S16C0802N
1/4
14
13
S16C0803N
3/8
17
10
S16C0804N
1/2
21
10.5
S16C0901N
3/8
1/8
14
18
S16C0902N
1/4
S16C0903N
3/8
17
13.5
S16C0904N
1/2
21
10.5
S16C1302N
1/2
1/4
17
18
S16C1303N
3/8
13.5
S16C1304N
1/2
21
10.5
