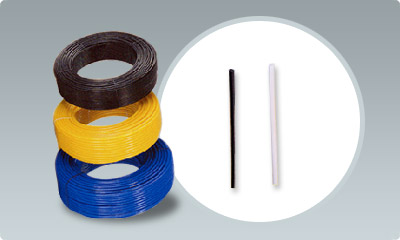

Polyethylene (LDPE) Tube - PE Tube

  • Working Temperature: -10J ~ 47J
  • Fluid: Air, Water
  • Standard Colors: Black, White

ITEM NO. TUBE SIZE(I.D. X O.D.) WORK PRESSURE BURST PRESSURE STANDARD LENGTH (M)
PE 2040 24 mm 7 bar 28 bar 200
PE 2540 2.54 mm 6 bar 24 bar 200
PE 3050 35 mm 6 bar 24 bar 100
PE 4060 46 mm 6 bar 24 bar 100
PE 6080 6x8 mm 5 bar 20 bar 100
PE 7510 7.5X10 mm 7 bar 28 bar 100
PE 9012 9X12 mm 7 bar 28 bar 100
PE 1802 0.1801/4 inch 100 psi 400 psi 100
PE 2703 0.2753/8 inch 100 psi 400 psi 100
PE 3704 0.3761/2 inch 100 psi 400 psi 100
