Amplifier Separated Type Photo
Sensor - AS Series |
|
|
|
 |
|
|
|
|
| |
 HS
Series < Heat Sink > |
| Model |
A-8 |
A-9 |
FS-50 |
| Figure |
 |
 |
 |
| Operating
Voltage |
110V
220V 50 / 60Hz |
10
- 30VDC |
| Output
Method |
Relay,
5A / 250VAC Max |
NPN
& PNP NO / NC 150mA |
| Response |
15ms |
2ms |
2ms |
| Ourput
Control |
non |
ONE SHOT
OFF DELAY
ON DELAY |
[0.1s~10s adjustable] |
|
non |
| Response
Time |
0.1
Sec ¥H¤U |
| Sensitivity
Adjuster |
270¢X
Trimmer |
| Operating
Temp / Hum. |
-20¢J
~ +80¢J¡F35% ~ 85% RH |
|
| |
| Sensor
Head Unit |
| Type |
Shape
& Dimension |
Model |
Light Source |
Sensible
Distance |
Sensible
Object |
| Thru Beam Type |
 |
SV-10 |
Green LED |
10 cm |
2£X |
| SV-15 |
Red LED |
15 cm |
0.5£X |
| SV-30 |
Red LED |
30 cm |
1£X |
| SV-50 |
Red LED |
50 cm |
2£X |
| SV-2M |
Infrared LED |
2M |
2£X |
 |

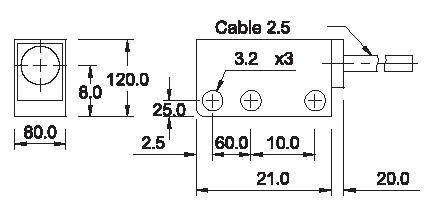

SH10 |
Green LED |
10 cm |
2£X |
| SH-15 |
Red LED |
15 cm |
0.5£X |
| SH-30 |
Red LED |
30 cm |
1£X |
| SH-50 |
Red LED |
50 cm |
2£X |
| SH-2M |
Infrared LED |
2M |
2£X |
 |

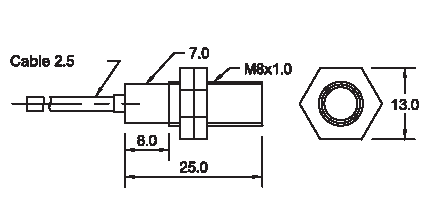

SC-10 |
Green LED |
10 cm |
2£X |
| SC-15 |
Red LED |
15 cm |
0.5£X |
| SC-30 |
Red LED |
30 cm |
1£X |
| SC-50 |
Red LED |
50 cm |
2£X |
| SC-2M |
Infrared LED |
2M |
2£X |
| Reflex Type |
 |

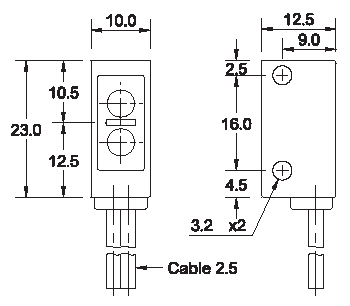

SB-03 |
Red LED |
3 cm |
2£X |
| SB-10 |
Infrared LED |
10 cm |
1£X |
|
| |
|
| |
|
|
