On Relay Timer/Flicker/Y-¡µ Starter - H3 Series
HOME



¡½ High Receptivity¡G0.2% of F.S. Max.
¡½ Reset Time¡G0.1S Max.
¡½ Setting Accuracy¡G5% of F.S. Max.
¡½ Approved¡GEMC¡BESD & LVD
Type Multi-Range ON Delay Timer Single-Range ON Delay Timer Multi-Range Flicker Y-¡µStarter
Model H3-M¡¼ H3-¡¼¡¼ H3-FK-M3 H3-TRD-30S
Figure
Range
M1¡G1S/10S/1M/10M
M3¡G3S/30S/3M/30M
M6¡G6S/60S/6M/60M
M1H¡G1M/10M/1H/10H
M3H¡G3M/30M/3H/30H
M6H¡G6M/60M/6H/60H
1S¡B3S¡B6S¡B10S¡B30S¡B60S¡B3M¡B6M¡B10M¡B30M¡B60M¡B3H¡B6H¡B10H100H 3S¡B30S¡B3M¡B30M 30S¡B3M¡B30M
Change Time¡G.0.2S
0.1~0.5S is Available ON Demanded
Weight 155g 155g 140g 105g

Specification
Power supply 12 or 24VAC/DC or 110V or 230V or 380VAC 50/60Hz
Wattage Consump 3VA max.
Control output Relay
Contact Rated 10A
Repetivity

0.2% of F.S max.
Setting Accuracy

5% of F.S max.
Reset Time 0.1S max.
Insulation Strength 100M£[ /500VDC
Dielectric Strength 2.5KV/1 min.
Circumstance -20¢X ~+60¢J , 35~85%RH
Life of Relay 20 X 106 Times

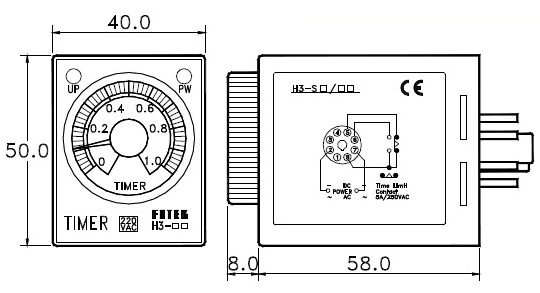

Dimension
Connection & Timing Diagram

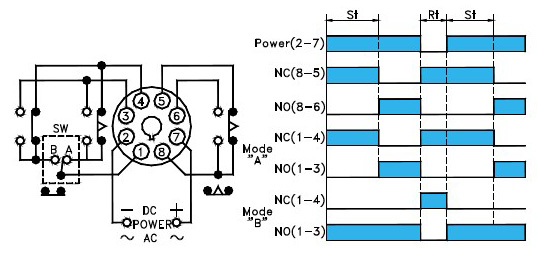

H3-M¡¼ & H3-¡¼ ¡¼

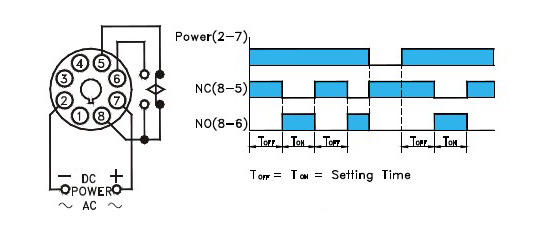

H3-FK-M3

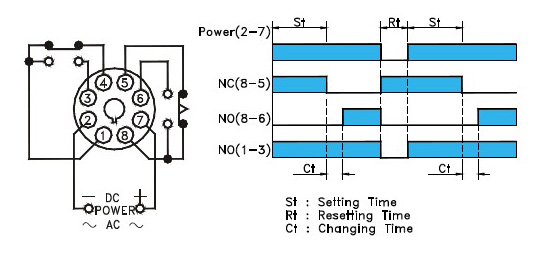

H3-TRD-30S
