| MC
Series Multi-function Counter |
|
| |
| ■ |
Counting
method：Two phases UP/Down or Single phase
UP or Down. |
| ■ |
Decimal point settable. |
| ■ |
Multiplier range：0.0001
~ 99.9999 |
| ■ |
Response time settable：0.2ms
~ 999.9ms. |
| ■ |
Response frequency：0.1Hz
~ 5KHz. |
| ■ |
Output control settable：N、R、A、C |
| ■ |
Output reset time
settable：0.01 ~ 99.99sec |
| ■ |
EMC/EMI/ESD/LVD |
|
|
 |
|
| |
 4
digits Single Preset Multi-Function Counter |
| Outline |
88
X 58 mm |
88
X 58 mm |
48
X 48 mm |
| Fixed
hole |
52
X 64 mm |
64
X 52 mm |
45
X 45 mm |
| Model |
MC50-4D |
MC60-4D |
MC48-4D |
| Operation
voltage |
240V
or 90 ~265V AC 50/60 Hz |
| DC
power supply |
60mA / 12DVC Max |
| Response
frequency |
Ton=0.1ms ~ 999.9ms settable |
| Input
method |
NPN
single phase. |
| Output
control |
N、R、C
selectable |
| Output
status |
NO
or NC selectable |
| Output
method |
Relay
1ab 3A / 250VAC Max |
| Dielectric
Strength |
Over
2.5 KV /1 min，Between Power And Each Terminal. |
| Operating
Temp/Hum. |
-20℃
~ +80℃；35% ~ 85% RH |
|
| |

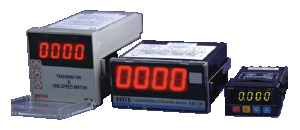

| Tachometer
& Line Speed Meter |
|
| |
| ■ |
Multi-Meter
Tachometer, Duty Meter & Line Speed
Meter. |
| ■ |
Pulse per Revolution
Settable. |
| ■ |
Decimal point Auto
Shift. |
| ■ |
Unit of Diameter：mm |
|
|
 |
|
| |
| Outline |
72
X 72 X 120 mm |
96
X 48 X 90 mm |
48
X 28 X 85 mm |
| Fixed
hole |
68
X 68 mm |
92
X 45 mm |
45
X 23 mm |
| Model |
SM-30 |
SM-20 |
SM-10 |
| Operation
voltage |
10V
/ 220V AC ± 20% 50/60 Hz |
90
~265V AC 50/60 Hz |
| DC
power supply |
60mA / 12DVC Max |
50mA
/ 12DVC Max |
| Response
frequency |
High Speed < 2.5kpcs；Low Speed < 60cps. |
| Dielectric
Strength |
Over
2.5 KV /1 min，Between Power And Each Terminal. |
| Operating
Temp/Hum. |
-20℃
~ +80℃；35% ~ 85% RH |
|
| |

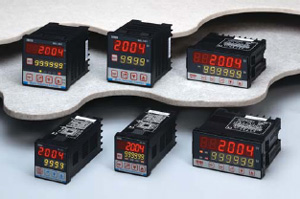

| Multi-function |
|
| |
| ■ |
Counting
method：Two phases UP/Down or Single phase
UP or Down. |
| ■ |
Decimal point settable. |
| ■ |
Multiplier range：0.0001
~ 99.9999 |
| ■ |
Response time settable：0.2ms
~ 999.9ms. |
| ■ |
Response frequency：0.1Hz
~ 5KHz. |
| ■ |
Output control settable：N、R、A、C |
| ■ |
Output reset time
settable：0.01 ~ 99.99sec |
| ■ |
EMC/EMI/ESD/LVD |
|
|
 |
|
| |
| General
data |
| Operation
voltage |
90
~ 265 VAC 50/60Hz |
| DC
power supply |
100mA / 12
VDC Max |
| Response
frequency |
High Speed
<2.5Kcps；Low Speed <60cps. |
| Memory
Method |
EEPROM |
| Output
control |
N、R、C、A <Selectable> |
| Output
method |
Relay 1ab 3A
/ 250 VAC Max |
| Dielectric
Strength |
Over 2.5KV
/ 1min，Between Power And Each Terminal. |
| Operating
Temp/Hum. |
-20℃ ~ +80℃；35%
~ 85% RH |
|
| |
| DIN
48 X 48 |
| Outline |
48
X 48 mm Fixed hole 45 X45 mm |
| Model |
MC-441 |
MC-461 |
MC-442 |
MC-462 |
| Description |
4
digits Single Preset |
6
digits Single Preset |
4 digits Dual Preset |
6
digits Dual Preset |
| Figure |
 |
 |
 |
 |
|
| |
| DIN
72 X 72 |
| Outline |
72
X 72 mm Fixed hole 68 X 68 mm |
| Model |
MC-341 |
MC-361 |
MC-342 |
MC-362 |
| Description |
4
digits Single Preset |
6
digits Single Preset |
4 digits Dual Preset |
6
digits Dual Preset |
| Figure |
 |
 |
 |
 |
|
| |
| DIN
48 X 96 |
| Outline |
96
X 48 mm Fixed hole 92 X 45 mm |
| Model |
MC-261 |
MC-262 |
| Description |
6
digits Single Preset |
6 digits Dual Preset |
| Figure |
 |
 |
|
| |
| Wheel Type Length Encoder - WE Series |
|
| |
| ■ |
High Response
Frequency：10K Hz |
| ■ |
High Speed of Revolution：6K
RPM |
| ■ |
Voltage & Current
Output with NPN+PNP. |
| ■ |
High Reliability with
Anti-Noise Circuit. |
| ■ |
Multi-Measuring Unit/Pulse
1mm：0.01M、0.1M、1M、0.001Yd、0.01Yd、0.1Yd、1Yd |
| ■ |
Model of Two Phase
Output：WE-M2T、WE-M3T、WE-M4T、WE-Y2T、WE-Y3T、WE-Y4T |
|
|
 |
|
| Type |
Mpdel |
Unit
/ Pulse |
Output
Phase |
Operation
voltage |
RPM.
max |
Response
Frequencies |
| Meter
Wheel |
WE-M1 |
1
( M ) |
Single
NPN+PNP |
10
~30 VDC |
6K
RPM |
2K
Hz |
| WE-M2 |
0.1
( M ) |
| WE-M3 |
0.01
( M ) |
| WE-M2T |
1
( M ) |
Two
phase
NPN+PNP |
3K
RPM |
10K
Hz |
| WE-M3T |
0.1
( M ) |
| WE-M4T |
0.01
( M ) |
| Yard
Wheel |
WE-Y1 |
1
( yd ) |
Single
NPN+PNP |
6K
RPM |
2K
Hz |
| WE-Y2 |
01 ( yd ) |
| WE-Y3 |
0.01
( yd ) |
| WE-Y2T |
1 ( yd ) |
Two
phase
NPN+PNP |
3K
RPM |
10K
Hz |
| WE-Y3T |
0.01
( yd ) |
| WE-Y4T |
0.001 ( yd )
|
|
