Panel Type Panel Type Power ON Delay Timer - H2Y/H3Y Series
Type STPY H3
Model H2Y-□□ H3Y-□□
Range 1S, 3S, 6S, 10S, 30S, 60S, 3M, 6M, 10M, 30M, 60M, 3H, 10H, 30H, 60H
Power Supply 165g 160g
Power supply 12 or 24VAC/DC or 110V or 230V or 380VAC 50/60Hz
Wattage Consump 3VA max.
Control output Relay
Contact Rated 10A

0.2% of F.S max.

Setting Accuracy

5% of F.S max.

Reset Time 0.1S max.
Insulation Strength 100MΩ /500VDC
Dielectric Strength 2.5KV/1 min.
Circumstance -20° ~+60℃ , 35~85%RH
Life of Relay 20 X 106 Times

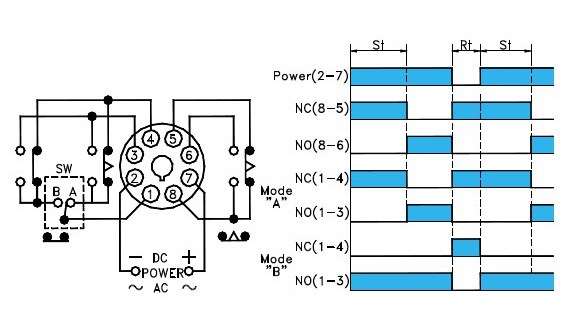

Connection & Timing Diagram
H2Y-□ □ & H3Y-□ □

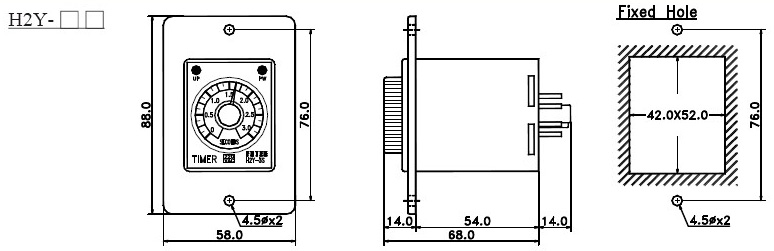

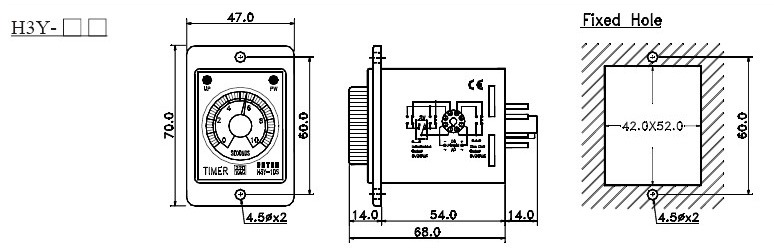

Dimension & Fixed Hole
MY Series Mini Type Power ON delay Digital timer

■ High Receptivity:0.2% of F.S. Max.
■ Reset Time:0.1S Max.
■Setting Accuracy:5% of F.S. Max.
■CE Approved:EMC , RSD & LVD

Power supply 12 or 24VDC or 110VAC or 220VAC 50/60Hz Guiding of Model:

1. Series
2. Range
3. Contact Poles
4. Operating Voltages
Range 1S、3S、6S、10S、30S、60S、3M、6M、10M、30M、60M、3H、6H、10H、30H
Contact Rated 7A / 250VAC Max 2Poies or 4Poies
Receptivity 0.2%以下
Setting Accuracy 0.5%以下
Reset Timer 0.1Sec 以下
Dielectric strength 2.5KV / 1 min.
Circumstance -20℃ ~ +80℃;35% ~ 85% RH
