NAMUR & ISO series 5/2 & 5/3-way solenoid valves of aluminum alloy body for pipe connection
| ACTUATION |
Single / Double Coil |
| BODY MATERIAL |
Aluminum Alloy |
| FUNCTION |
Normally Closed |
| PORT SIZE |
1/8" ~ 1/2" |
| ORIFICE |
12mm ~ 50mm |
| CV |
0.67 ~ 28 |
| FLUID TEMP. |
-10 ~ 60℃ |
| SEAT DISC. |
NBR,VITONr®,PTFE |
| PRESSURE |
1.5 ~ 9.9kg/cm² |
| APPLICATION |
Air |
| VOLTAGE |
12, 24 VDC, 24, 110, 120, 220, 230, 240, VAC 50/60 Hz |
|
|
 |

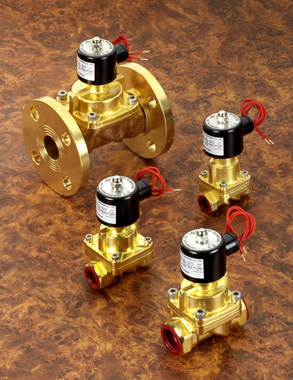

AD series 2/2-way solenoid valves of forged brass body for general application
| ACTUATION |
Direct-operated / Magnalift |
| BODY MATERIAL |
Forged Brass |
| FUNCTION |
Normally Closed |
| PORT SIZE |
1/8" ~ 2" Flange |
| ORIFICE |
1.2mm ~ 50mm |
| CV |
0.07 ~ 48 |
| FLUID TEMP. |
-10 ~ 120℃ |
| SEAT DISC. |
NBR,SILICONE,EPDM,VITON®,PTFE |
| PRESSURE |
0 ~ 150kg/cm² |
| APPLICATION |
Liquid, Air, Gas, Naphtha, Vacuum |
| VOLTAGE |
12, 24 VDC, 24, 110, 120, 220, 230, 240, 380, 415 VAC 50/60 Hz |
|
|
 |

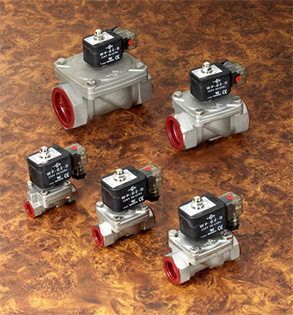

ADS series 2/2-way solenoid valves of stainless steel 316 body for slight acid & alkali-resistant application
| ACTUATION |
Direct-operated / Magnalift |
| BODY MATERIAL |
Stainless Steel 316 |
| FUNCTION |
Normally Closed |
| PORT SIZE |
1/8" ~ 2" Flange |
| ORIFICE |
1.2mm ~ 50mm |
| CV |
0.07 ~ 48 |
| FLUID TEMP. |
-10 ~ 120℃ |
| SEAT DISC. |
NBR,SILICONE,EPDM,VITONr®,PTFE |
| PRESSURE |
0 ~ 150kg/cm² |
| APPLICATION |
Liquid, Air, Gas, Slight acid & alkali, Vacuum |
| VOLTAGE |
12, 24 VDC, 24, 110, 120, 220, 230, 240, 380, 415 VAC 50/60 Hz |
|
|
 |
NSA series 2/2-way solenoid valves of forged brass body for high temperature application
| ACTUATION |
Pilot |
| BODY MATERIAL |
Forged Brass |
| FUNCTION |
Normally Closed |
| PORT SIZE |
1/8" ~ 2" Flange |
| ORIFICE |
3mm ~ 50mm |
| CV |
0.26 ~ 48 |
| FLUID TEMP. |
-10 ~ 200℃ |
| SEAT DISC. |
PTFE® |
| PRESSURE |
0.5 ~ 40kg/cm² |
| APPLICATION |
Liquid, Air, Steam, Oil, High pressure |
| VOLTAGE |
12, 24 VDC, 24, 110, 120, 220, 230, 240, 380, 415 VAC 50/60 Hz |
|
|
 |

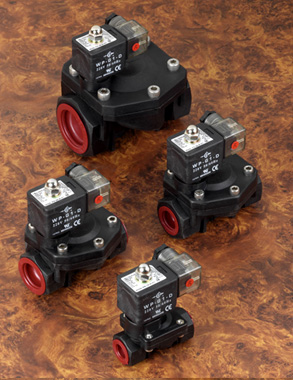

PA series 2/2-way solenoid valves of P.O.M. body for slight acid & alkali-resistant application
| ACTUATION |
Pilot |
| BODY MATERIAL |
P.O.M. |
| FUNCTION |
Normally Closed |
| PORT SIZE |
3/8" ~ 1½" Thread |
| ORIFICE |
15mm ~ 35mm |
| CV |
4.5 ~ 26 |
| FLUID TEMP. |
-10 ~ 130℃ |
| SEAT DISC. |
NBR,EPDM,VITONr® |
| PRESSURE |
0.5 ~ 10kg/cm² |
| APPLICATION |
Liquid, Air, Naphtha, Slight Acid & Alkali |
| VOLTAGE |
12, 24 VDC, 24, 110, 120, 220, 230, 240, 380, 415 VAC 50/60 Hz |
|
|
 |

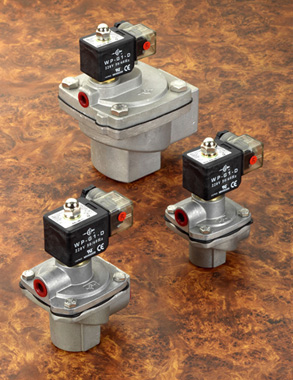

PXL series 2/2-way dust-collecting valves of die-cast aluminum body for air application
| ACTUATION |
Pilot |
| BODY MATERIAL |
Die-cast Aluminum |
| FUNCTION |
Normally Closed |
| PORT SIZE |
3/4" ~ 1½" Thread |
| ORIFICE |
20mm ~ 40mm |
| CV |
9.5 ~ 45 |
| FLUID TEMP. |
-10 ~ 80℃ |
| SEAT DISC. |
NBR |
| PRESSURE |
0.5 ~ 9.9kg/cm² |
| APPLICATION |
Air |
| VOLTAGE |
12, 24 VDC, 24, 110, 120, 220, 230, 240, 380, 415 VAC 50/60 Hz |
|
|
 |
SVC series 2/2-way solenoid valves of PTFE body for high corrosion-resistant application
| ACTUATION |
Isolate |
| BODY MATERIAL |
PTFE |
| FUNCTION |
Normally Closed |
| PORT SIZE |
1/4" ~ 1/2" Thread |
| ORIFICE |
3mm ~ 12mm |
| CV |
0.26 ~ 3.30 |
| FLUID TEMP. |
-10 ~ 40℃ |
| SEAT DISC. |
PTFE |
| PRESSURE |
0 ~ 5kg/cm² |
| APPLICATION |
Acid/Alkali fluids |
| VOLTAGE |
12, 24 VDC, 24, 110, 120, 220, 230, 240, 380, 415 VAC 50/60 Hz/td>
|
|
|
