Brass Fittings
Push In Type Compress Type

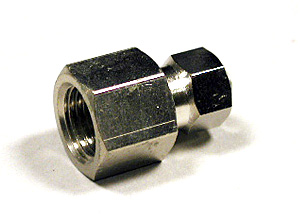

  CTCFN  Female Straight
Tube(Metric)   -  Thread(PT)

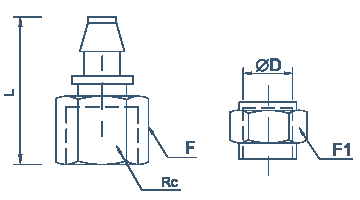

Model D Rc F L F1
CTCFN0401 4 1/8 14 23.8 8
CTCFN0402 1/4 17 26.8
CTCFN0601 6 1/8 14 23.8 10
CTCFN0602 1/4 17 26.8
CTCFN0603 3/8 21 27.8
CTCFN0801 8 1/8 14 23.8 12
CTCFN0802 1/4 17 26.8
CTCFN0803 3/8 21 27.8
CTCFN1002 10 1/4 17 28.3 14
CTCFN1003 3/8 21 29.3
CTCFN1004 1/2 24 -
CTCFN1202 12 1/4 17 28.3 17
CTCFN1203 3/8 21 29.3
CTCFN1204 1/2 24 -

Tube(Inch)   -  Thread(NPT)
Model D Rc F L F1
CTCFN0401N 5/32 1/8 14 23.8 8
CTCFN0402N 1/4 17 26.8
CTCFN0701N 1/4 1/8 14 23.8 10
CTCFN0702N 1/4 17 26.8
CTCFN0703N 3/8 21 27.8
CTCFN0801N 5/16 1/8 14 23.8 12
CTCFN0802N 1/4 17 26.8
CTCFN0803N 3/8 21 27.8
CTCFN0902N 3/8 1/4 17 28.3 14
CTCFN0903N 3/8 21 29.3
CTCFN0904N 1/2 24 -
CTCFN1302N 1/2 1/4 17 28.3 17
CTCFN1303N 3/8 21 29.3
CTCFN1304N 1/2 24 -

Tube(Inch)   -  Thread(NPT)
Model D Rc F L F1
CTCFN0401N 5/32 1/8 14 23.8 8
CTCFN0402N 1/4 17 26.8
CTCFN0701N 1/4 1/8 14 23.8 10
CTCFN0702N 1/4 17 26.8
CTCFN0703N 3/8 21 27.8
CTCFN0801N 5/16 1/8 14 23.8 12
CTCFN0802N 1/4 17 26.8
CTCFN0803N 3/8 21 27.8
CTCFN0902N 3/8 1/4 17 28.3 14
CTCFN0903N 3/8 21 29.3
CTCFN0904N 1/2 24 -
CTCFN1302N 1/2 1/4 17 28.3 17
CTCFN1303N 3/8 21 29.3
CTCFN1304N 1/2 24 -
