Brass Fittings
Push In Type Compress Type
  Push In Type

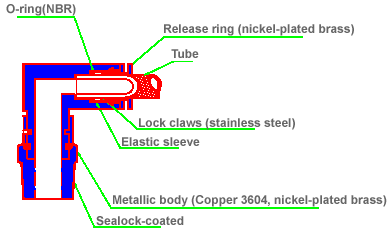

structure

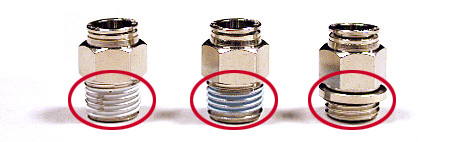

Push in fittings Features:
  • Patent registration number : 132670
  • Minimized size fits any tube lines in small spaces.
  • Metal release ring removl of the air compressing tube after longer fitting period.
  • CTOC-C and CTOL-Cseries are perfect solutions for fitting in small space.
  • Heat resistance and spatter resistance.

Specifications :
  • Temperature range : 0-80¢XC
  • Pressure range : 0-9kgf/cm2
  • Operating Fluid : Air
  • Custom  Made for high temperature is available please advise.

How to order

1. Type                  N:with compress fittings.

2. Tube Dia (D)

  Metric Inch
Code 04 06 08 10 12 04 07 08 09 13
Dia 4 6 8 10 12 3.97 6.35 7.94 9.53 12.7

3. Thread size (R)
  PT NPT PS
Code M3 M5 01 02 03 04 1032 01 02 03 04 01 02 03 04
Dia M3X0.5 M5X0.8 R1/8 R1/4 R3/8 R1/2 10-32UNF R1/8 R1/4 R3/8 R1/2 R1/8 R1/4 R3/8 R1/2

4. Metallic Body
5. Thread Type


Blank : PT                        N : NPT                         G : PS


CTC
CTOC
CTCF
CTU/CTUG
CTLC
CTOLC
CTEC
CTBC
CTDC
CTV
JDSCC
CTSCC
JDSC-FC
CTMU
CTMF
