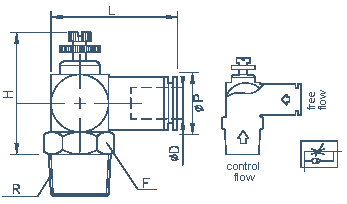

CTSCC
Speed Controller |
 |
 |
| ˇiSwivelˇj |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
| CTSC04M5C |
4 |
M5x0.8 |
8 |
8 |
23 |
30 |
| CTSC0401C |
1/8 |
10 |
31 |
| CTSC0402C |
1/4 |
14 |
| CTSC06M5C |
6 |
M5x0.8 |
8 |
10 |
23.5 |
30 |
| CTSC0601C |
1/8 |
12 |
26.5 |
34 |
| CTSC0602C |
1/4 |
14 |
| CTSC0603C |
3/8 |
17 |
30 |
38 |
| CTSC0604C |
1/2 |
21 |
| CTSC0801C |
8 |
1/8 |
14 |
12 |
31 |
| CTSC0802C |
1/4 |
| CTSC0803C |
3/8 |
17 |
| CTSC0804C |
1/2 |
21 |
| CTSC1001C |
10 |
1/8 |
19 |
14 |
37 |
46 |
| CTSC1002C |
1/4 |
| CTSC1003C |
3/8 |
| CTSC1004C |
1/2 |
21 |
| CTSC1202C |
12 |
1/4 |
19 |
17 |
| CTSC1203C |
3/8 |
| CTSC1204C |
1/2 |
21 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
| CTSC041032C |
5/32 |
10-32UNF |
8 |
8 |
23 |
30 |
| CTSC0401CN |
1/8 |
10 |
31 |
| CTSC0402CN |
1/4 |
14 |
| CTSC071032C |
1/4 |
10-32UNF |
8 |
10 |
23.5 |
30 |
| CTSC0701CN |
1/8 |
12 |
26.5 |
34 |
| CTSC0702CN |
1/4 |
14 |
| CTSC0703CN |
3/8 |
17 |
30 |
38 |
| CTSC0704CN |
1/2 |
21 |
| CTSC0801CN |
5/16 |
1/8 |
14 |
12 |
31 |
| CTSC0802CN |
1/4 |
| CTSC0803CN |
3/8 |
17 |
| CTSC0804CN |
1/2 |
21 |
| CTSC0901CN |
3/8 |
1/8 |
19 |
14 |
37 |
46 |
| CTSC0902CN |
1/4 |
| CTSC0903CN |
3/8 |
| CTSC0904CN |
1/2 |
21 |
| CTSC1302CN |
1/2 |
1/4 |
19 |
17 |
| CTSC1303CN |
3/8 |
| CTSC1304CN |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
| CTSC04M5C |
4 |
M5x0.8 |
8 |
8 |
23 |
31 |
| CTSC0401CG |
1/8 |
10 |
32 |
| CTSC0402CG |
1/4 |
14 |
| CTSC06M5C |
6 |
M5x0.8 |
8 |
10 |
23.5 |
31 |
| CTSC0601CG |
1/8 |
12 |
26.5 |
35 |
| CTSC0602CG |
1/4 |
14 |
| CTSC0603CG |
3/8 |
17 |
30 |
39 |
| CTSC0604CG |
1/2 |
21 |
| CTSC0801CG |
8 |
1/8 |
14 |
12 |
31 |
| CTSC0802CG |
1/4 |
| CTSC0803CG |
3/8 |
17 |
| CTSC0804CG |
1/2 |
21 |
| CTSC1001CG |
10 |
1/8 |
19 |
14 |
37 |
47 |
| CTSC1002CG |
1/4 |
| CTSC1003CG |
3/8 |
| CTSC1004CG |
1/2 |
21 |
| CTSC1202CG |
12 |
1/4 |
19 |
17 |
| CTSC1203CG |
3/8 |
| CTSC1204CG |
1/2 |
21 |
|
