CTCN Straight |
|
| Tube(Metric)
- Thread(PT) |

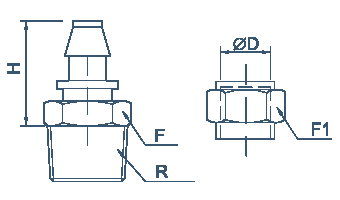

| Model |
 D |
R |
F |
H |
F1 |
| CTCN04M5 |
4 |
M5x0.8 |
10 |
16.5 |
8 |
| CTCN0401 |
1/8 |
14 |
| CTCN0402 |
1/4 |
14 |
| CTCN06M5 |
6 |
M5x0.8 |
10 |
18 |
10 |
| CTCN0601 |
1/8 |
16 |
| CTCN0602 |
1/4 |
14 |
| CTCN0603 |
3/8 |
17 |
| CTCN0801 |
8 |
1/8 |
12 |
19 |
12 |
| CTCN0802 |
1/4 |
14 |
| CTCN0803 |
3/8 |
17 |
| CTCN0804 |
1/2 |
21 |
| CTCN1001 |
10 |
1/8 |
14 |
20.5 |
14 |
| CTCN1002 |
1/4 |
| CTCN1003 |
3/8 |
17 |
| CTCN1004 |
1/2 |
21 |
| CTCN1202 |
12 |
1/4 |
17 |
38.5 |
17 |
| CTCN1203 |
3/8 |
21 |
| CTCN1204 |
1/2 |
|
| |
| hTube(Inc)
- Thread(NPT) |
| Model |
D |
R |
F |
H |
F1 |
| CTCN04-1032 |
5/32 |
10-32UNF |
8 |
16.5 |
8 |
| CTCN0401N |
1/8 |
10 |
14 |
| CTCN0402N |
1/4 |
14 |
| CTCN07-1032 |
1/4 |
10-32UNF |
10 |
18 |
10 |
| CTCN0701N |
1/8 |
16 |
| CTCN0702N |
1/4 |
14 |
| CTCN0703N |
3/8 |
17 |
| CTCN0801N |
5/16 |
1/8 |
12 |
19 |
12 |
| CTCN0802N |
1/4 |
14 |
| CTCN0803N |
3/8 |
17 |
| CTCN0804N |
1/2 |
21 |
| CTCN0901N |
3/8 |
1/8 |
14 |
20.5 |
14 |
| CTCN0902N |
1/4 |
| CTCN0903N |
3/8 |
17 |
| CTCN0904N |
1/2 |
21 |
| CTCN1302N |
1/2 |
1/4 |
17 |
22.5 |
17 |
| CTCN1303N |
3/8 |
| CTCN1304N |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
H |
F1 |
| CTCN04M5 |
4 |
M5x0.8 |
8 |
16.5 |
8 |
| CTCN0401G |
1/8 |
10 |
14 |
| CTCN0402G |
1/4 |
14 |
| CTCN06M5 |
6 |
M5x0.8 |
10 |
18 |
10 |
| CTCN0601G |
1/8 |
16 |
| CTCN0602G |
1/4 |
14 |
| CTCN0603G |
3/8 |
17 |
| CTCN0801G |
8 |
1/8 |
12 |
19 |
12 |
| CTCN0802G |
1/4 |
14 |
| CTCN0803G |
3/8 |
17 |
| CTCN0804G |
1/2 |
21 |
| CTCN1001G |
10 |
1/8 |
14 |
20.5 |
14 |
| CTCN1002G |
1/4 |
| CTCN1003G |
3/8 |
17 |
| CTCN1004G |
1/2 |
21 |
| CTCN1202G |
12 |
1/4 |
17 |
22.5 |
17 |
| CTCN1203G |
3/8 |
| CTCN1204G |
1/2 |
21 |
|
