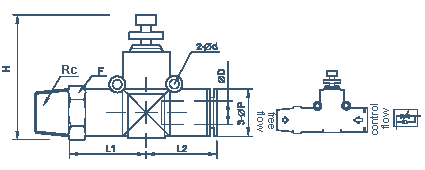

JDSCKB |
 |
 |
| ˇiSwivelˇj |
|
|
|
| Tube(
m / m ) - Thread( PT ) |
| Model |
 D |
R |
F |
P |
L1 |
L2 |
H |
d |
| JDSCK04M5B |
4 |
M5x0.8 |
10 |
12 |
20.6 |
18.6 |
34.7 |
4.3 |
| JDSCK0401B |
1/8 |
| JDSCK0402B |
1/4 |
14 |
| JDSCK06M5B |
6 |
M5x0.8 |
12 |
14 |
22.4 |
20.4 |
38.1 |
| JDSCK0601B |
1/8 |
| JDSCK0602B |
1/4 |
14 |
| JDSCK0603B |
3/8 |
17 |
| JDSCK0801B |
8 |
1/8 |
14 |
16 |
24.1 |
21.9 |
46.5 |
| JDSCK0802B |
1/4 |
| JDSCK0803B |
3/8 |
17 |
| JDSCK1002B |
10 |
1/4 |
21 |
29.1 |
26.8 |
48.8 |
| JDSCK1003B |
3/8 |
| JDSCK1004B |
1/2 |
21 |
| JDSCK1202B |
12 |
1/4 |
19 |
49.8 |
| JDSCK1203B |
3/8 |
| JDSCK1204B |
1/2 |
21 |
|
| |
| Tube(
Inch ) - Thread( NPT ) |
| Model |
D |
R |
F |
P |
L1 |
L2 |
H |
d |
| JDSCK041032B |
5/32 |
10-32UNF |
10 |
12 |
20.6 |
18.6 |
34.7 |
4.3 |
| JDSCK0401BN |
1/8 |
| JDSCK0402BN |
1/4 |
14 |
| JDSCK071032B |
1/4 |
10-32UNF |
12 |
14 |
22.4 |
20.4 |
38.1 |
| JDSCK0701BN |
1/8 |
| JDSCK0702BN |
1/4 |
14 |
| JDSCK0703BN |
3/8 |
17 |
| JDSCK0801BN |
5/16 |
1/8 |
14 |
16 |
24.1 |
21.9 |
46.5 |
| JDSCK0802BN |
1/4 |
| JDSCK0803BN |
3/8 |
17 |
| JDSCK0902BN |
3/8 |
1/4 |
21 |
29.1 |
26.8 |
48.8 |
| JDSCK0903BN |
3/8 |
| JDSCK0904BN |
1/2 |
21 |
| JDSCK1302BN |
1/2 |
1/4 |
19 |
49.8 |
| JDSCK1303BN |
3/8 |
| JDSCK1304BN |
1/2 |
21 |
|
| |
| Tube(
m / m ) - Thread(G) |
| Model |
D |
R |
F |
P |
L1 |
L2 |
H |
d |
| JDSCK04M5B |
4 |
M5x0.8 |
10 |
12 |
21.6 |
18.6 |
34.7 |
4.3 |
| JDSCK0401BG |
1/8 |
| JDSCK0402BG |
1/4 |
14 |
| JDSCK06M5B |
6 |
M5x0.8 |
12 |
14 |
23.4 |
20.4 |
38.1 |
| JDSCK0601BG |
1/8 |
| JDSCK0602BG |
1/4 |
14 |
| JDSCK0603BG |
3/8 |
17 |
| JDSCK0801BG |
8 |
1/8 |
14 |
16 |
25.1 |
21.9 |
46.5 |
| JDSCK0802BG |
1/4 |
| JDSCK0803BG |
3/8 |
17 |
| JDSCK1002BG |
10 |
1/4 |
21 |
30.1 |
26.8 |
48.8 |
| JDSCK1003BG |
3/8 |
| JDSCK1004BG |
1/2 |
21 |
| JDSCK1202BG |
12 |
1/4 |
19 |
49.8 |
| JDSCK1203BG |
3/8 |
| JDSCK1204BG |
1/2 |
21 |
|
