Speed Controllers
Push In Type Compress Type
  Compress Type

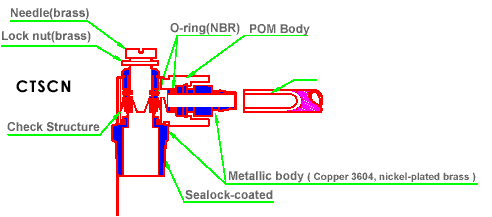

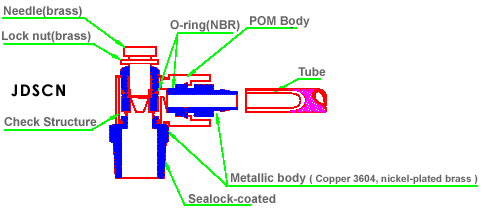

Structure :

Features:
  • Patent registration number : 103380/88754/96974
  • Easier fittings to tubes than ordinary brass compression fittings.
  • Compactable with PU tube with higher circularity and outer diameter tolerance to save costs.
  • Air-block lightness.
  • CTSCN Series for low and medium speed control(recommended for higher control quality).
  • JDSCN Series for high and medium speed control.
  • One size with different flow options perfect fitting with air cylinder.
Specifications :
  • Temperature range : 0-60¢XC
  • Pressure range : 0-9kgf/cm2
  • Operating Fluid : Air
How to order
1. Type                CT : for medium, low fiows.                     JD : for medium, high flows.
2. SC : Speed Controller      FC : Flow Controller
3. The Shape of speed controller
4. Blank : Push In Type        N : Compress type
5. Tube Dia (D)
  Metric Inch
Code 04 06 08 10 12 04 07 08 09 13
Dia 4 6 8 10 12 3.97 6.35 7.94 9.53 12.7

6. Thread size (R)
  PT NPT PS
Code M3 M5 01 02 03 04 1032 01 02 03 04 01 02 03 04
Dia M3X0.5 M3X0.8 R1/8 R1/4 R3/8 R1/2 10-32UNF R1/8 R1/4 R3/8 R1/2 R1/8 R1/4 R3/8 R1/2

7. Blank : Outlet control      B : Inlet control
8. Thread Type


Blank : PT                        N : NPT                         G : PS

JDSCN
JDSCNB
JDSCSN
JDSCSNB
JDSCUN
JDSCKN
JDSCKNB
CTSCN
CTSCNB
CTSCSN
CTSCSB
CTSCUN
CTSCKN
CTSCKNB
CTSCSNB
