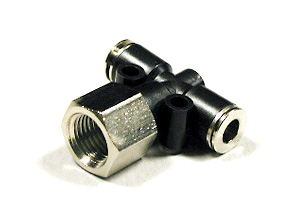

CTBGF Different
Dia. Female Tee |
 |
 |
| Ħi
Swivel Ħj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D1 |
D2 |
Rc |
F |
P |
L |
H |
d |
| CTBGF060401 |
6 |
4 |
1/8 |
14 |
12 |
41.5 |
31 |
3.3 |
| CTBGF060402 |
1/4 |
17 |
34 |
4.3 |
| CTBGF080601 |
8 |
6 |
1/8 |
14 |
14 |
44.5 |
33 |
| CTBGF080602 |
1/4 |
17 |
36 |
| CTBGF080603 |
3/8 |
21 |
37 |
| CTBGF100802 |
10 |
8 |
1/4 |
14 |
16 |
56.5 |
40 |
| CTBGF100803 |
3/8 |
17 |
41 |
| CTBGF121002 |
12 |
10 |
1/4 |
21 |
21 |
77.5 |
44.5 |
| CTBGF121003 |
3/8 |
17 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D1 |
D2 |
Rc |
F |
P |
L |
H |
d |
| CTBGF070401N |
1/4 |
5/32 |
1/8 |
14 |
12 |
41.5 |
31 |
3.3 |
| CTBGF070402N |
1/4 |
17 |
34 |
4.3 |
| CTBGF080701N |
5/16 |
1/4 |
1/8 |
14 |
14 |
44.5 |
33 |
| CTBGF080702N |
1/4 |
17 |
36 |
| CTBGF080703N |
3/8 |
21 |
37 |
| CTBGF090802N |
3/8 |
5/16 |
1/4 |
14 |
16 |
56.5 |
40 |
| CTBGF090803N |
3/8 |
17 |
41 |
| CTBGF130902N |
1/2 |
3/8 |
1/4 |
21 |
21 |
77.5 |
44.5 |
| CTBGF130903N |
3/8 |
17 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D1 |
D2 |
Rc |
F |
P |
L |
H |
d |
| CTBGF060401G |
6 |
4 |
1/8 |
14 |
12 |
41.5 |
31 |
3.3 |
| CTBGF060402G |
1/4 |
17 |
34 |
4.3 |
| CTBGF080601G |
8 |
6 |
1/8 |
14 |
14 |
44.5 |
33 |
| CTBGF080602G |
1/4 |
17 |
36 |
| CTBGF080603G |
3/8 |
21 |
37 |
| CTBGF100802G |
10 |
8 |
1/4 |
14 |
16 |
56.5 |
40 |
| CTBGF100803G |
3/8 |
17 |
41 |
| CTBGF121002G |
12 |
10 |
1/4 |
21 |
21 |
77.5 |
44.5 |
| CTBGF121003G |
3/8 |
17 |
|
