Push In Fittings
Push In Type Compress Type
  Push In Type

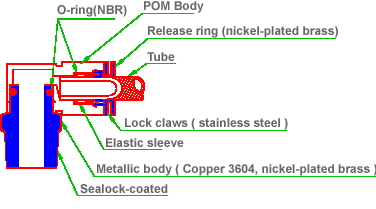

structure

Features:
  • Patent registration number : 132670
  • Minimized size fits any tube lines in small spaces.
  • Metal release ring removal of the air compressing tube after longer fitting period.
  • CTOC and CTOL series are perfect solutions for fitting in small spaces.

Specifications :
  • Temperature range : 0-60¢XC
  • Pressure range : 0-9kgf/cm2
  • Operating Fluid : Air
How to order
1. Type                                                                                                                                N : With Compression fittings.
2. Tube Dia (D)
  Metric Inch
Code 04 06 08 10 12 04 07 08 09 13
Dia 4 6 8 10 12 3.97 6.35 7.94 9.53 12.7

3. Thread size (R)
  PT NPT PS
Code M3 M5 01 02 03 04 1032 01 02 03 04 01 02 03 04
Dia M3X0.5 M5X0.8 R1/8 R1/4 R3/8 R1/2 10-32UNF R1/8 R1/4 R3/8 R1/2 R1/8 R1/4 R3/8 R1/2

4. Thread Type


Blank : PT                        N : NPT                         G : PS

CTC
CTOC
CTCF
CTU/CTUG
CTMU
CTMF
CTUS
CTL
CTLL
CTLF
CTV/CTVG
CTOL
CTBL
CTE/CTEG
CTB
CTBF
CTBG
CTBGF
CTD
CTDF
CTDG
CTDGF
CTYS
CTY/CTYG
CTX
CTXG
CTXF
CTXFG
