Push In Fittings
Push In Type Compress Type

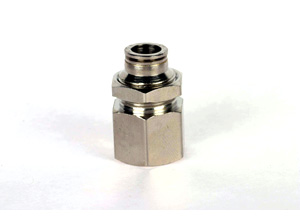

  CTMF   Bulkhead Female Straight
Tube(Metric)   -  Thread(PT)
Model D Rc F1 F2 P L
CTMF0401 4 1/8 14 14 12 28
CTMF0402 1/4 17 14 12 30
CTMF0601 6 1/8 17 17 12 31
CTMF0602 1/4 17 17 12 31
CTMF0603 3/8 21 17 14 32
CTMF0801 8 1/8 17 17 14 31
CTMF0802 1/4 17 17 14 31
CTMF0803 3/8 21 21 16 32
CTMF1002 10 1/4 21 24 20 34
CTMF1003 3/8 21 24 20 34
CTMF1004 1/2 25 24 20 34
CTMF1202 12 1/4 25 27 22 37
CTMF1203 3/8 25 27 22 37
CTMF1204 1/2 25 27 22 37

Tube(Inch)   -  Thread(NPT)
Model D Rc F1 F2 P L
CTMF0401N 5/32 1/8 14 14 12 28
CTMF0402N 1/4 17 14 12 30
CTMF0701N 1/4 1/8 17 17 14 31
CTMF0702N 1/4 17 17 14 31
CTMF0703N 3/8 21 17 14 32
CTMF0801N 5/16 1/8 17 17 14 31
CTMF0802N 1/4 17 17 14 31
CTMF0803N 3/8 21 21 16 32
CTMF0902N 3/8 1/4 21 24 20 34
CTMF0903N 3/8 21 24 20 34
CTMF0904N 1/2 25 24 20 34
CTMF1302N 1/2 1/4 25 27 22 37
CTMF1303N 3/8 25 27 22 37
CTMF1304N 1/2 25 27 22 37

Tube(Metric)   -  Thread(G)
Model D Rc F1 F2 P L
CTMF0401G 4 1/8 14 14 12 28
CTMF0402G 1/4 17 14 12 30
CTMF0601G 6 1/8 17 17 14 31
CTMF0602G 1/4 17 17 14 31
CTMF0603G 3/8 21 17 14 32
CTMF0801G 8 1/8 17 17 14 31
CTMF0802G 1/4 17 17 14 31
CTMF0803G 3/8 21 21 16 32
CTMF1002G 10 1/4 21 24 20 34
CTMF1003G 3/8 21 24 20 34
CTMF1004G 1/2 25 24 20 34
CTMF1202G 12 1/4 25 27 22 37
CTMF1203G 3/8 25 27 22 37
CTMF1204G 1/2 25 27 22 37
