Push In Fittings
Push In Type Compress Type
  Compress Type

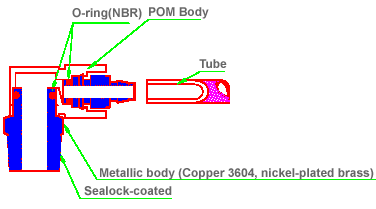

Structure :

Features:
  • Easier fitting to tubes then ordinary brass compression fittings.
  • Compactable with PU tube with higher circularity and outer diameter tolerance to save costs.
  • CTOLN series is the perfect solution for fitting in small space.

Specifications :
  • Temperature range : 0-60¢XC
  • Pressure range : 0-9kgf/cm2
  • Operating Fluid : Air
How to order
1. Type                                                                                                                N : With Compress fittings.
2. Tube Dia (D)
  Metric Inch
Code 04 06 08 10 12 04 07 08 09 13
Dia 4 6 8 10 12 3.97 6.35 7.94 9.53 12.7

3. Thread size (R)
  PT NPT PS
Code M3 M5 01 02 03 04 1032 01 02 03 04 01 02 03 04
Dia M3X0.5 M5X0.8 R1/8 R1/4 R3/8 R1/2 10-32UNF R1/8 R1/4 R3/8 R1/2 R1/8 R1/4 R3/8 R1/2

4. Thread Type


Blank : PT                        N : NPT                         G : PS

CTCN
CTCFN
CTLN
CTOLN
CTLLN
CTLFN
CTVN/CTVGN
CTBLN
CTBLFN
CTBVN
CTUNS
CTUN/CTUGN
CTBN
CTBGN
CTBFN
CTBGFN
CTEN/CTEGN
CTYNS
CTYN/CTYGN
CTDN
CTDGN
CTDFN
CTDGFN
CTXN
CTXGN
