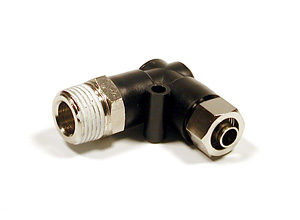

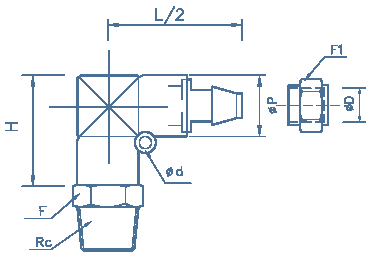

CTBLN
Tee |
 |
 |
| ˇiSwivelˇj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
F1 |
P |
L/2 |
H |
d |
| CTBLN04M5 |
4 |
M5x0.8 |
10 |
8 |
10 |
22.3 |
24.5 |
3.3 |
| CTBLN0401 |
1/8 |
25.5 |
4.3 |
| CTBLN0402 |
1/4 |
14 |
| CTBLN06M5 |
6 |
M5x0.8 |
12 |
10 |
12 |
25.7 |
26.5 |
| CTBLN0601 |
1/8 |
27.5 |
| CTBLN0602 |
1/4 |
14 |
| CTBLN0603 |
3/8 |
17 |
| CTBLN0801 |
8 |
1/8 |
14 |
12 |
14 |
29.8 |
30 |
| CTBLN0802 |
1/4 |
| CTBLN0803 |
3/8 |
17 |
| CTBLN1002 |
10 |
1/4 |
14 |
16 |
33.3 |
34.5 |
| CTBLN1003 |
3/8 |
| CTBLN1004 |
1/2 |
21 |
| CTBLN1202 |
12 |
1/4 |
19 |
17 |
21 |
38.5 |
38.5 |
| CTBLN1203 |
3/8 |
21 |
| CTBLN1204 |
1/2 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
F1 |
P |
L/2 |
H |
d |
| CTBLN041032 |
5/32 |
10-32UNF |
10 |
8 |
10 |
22.3 |
24.5 |
3.3 |
| CTBLN0401N |
1/8 |
25.5 |
4.3 |
| CTBLN0402N |
1/4 |
14 |
| CTBLN071032 |
1/4 |
10-32UNF |
12 |
10 |
|
25.7 |
26.5 |
| CTBLN0701N |
1/8 |
27.5 |
| CTBLN0702N |
1/4 |
14 |
| CTBLN0703N |
3/8 |
17 |
| CTBLN0801N |
5/16 |
1/8 |
14 |
12 |
14 |
28.8 |
30 |
| CTBLN0802N |
1/4 |
| CTBLN0803N |
3/8 |
17 |
| CTBLN0902N |
3/8 |
1/4 |
14 |
|
33.3 |
34.5 |
| CTBLN0903N |
3/8 |
| CTBLN0904N |
1/2 |
21 |
| CTBLN1302N |
1/2 |
1/4 |
19 |
17 |
21 |
38.5 |
38.5 |
| CTBLN1303N |
3/8 |
21 |
| CTBLN1304N |
1/2 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
F1 |
P |
L/2 |
H |
d |
| CTBLN04M5 |
4 |
M5x0.8 |
10 |
8 |
10 |
22.3 |
24.5 |
3.3 |
| CTBLN0401G |
1/8 |
25.5 |
4.3 |
| CTBLN0402G |
1/4 |
14 |
| CTBLN06M5 |
6 |
M5x0.8 |
12 |
10 |
12 |
|
26.5 |
| CTBLN0601G |
1/8 |
27.5 |
| CTBLN0602G |
1/4 |
14 |
| CTBLN0603G |
3/8 |
17 |
| CTBLN0801G |
8 |
1/8 |
14 |
12 |
14 |
28.8 |
30 |
| CTBLN0802G |
1/4 |
| CTBLN0803G |
3/8 |
17 |
| CTBLN1002G |
10 |
1/4 |
14 |
16 |
|
34.5 |
| CTBLN1003G |
3/8 |
| CTBLN1004G |
1/2 |
21 |
| CTBLN1202G |
12 |
1/4 |
19 |
17 |
21 |
38.5 |
38.5 |
| CTBLN1203G |
3/8 |
21 |
| CTBLN1204G |
1/2 |
|
