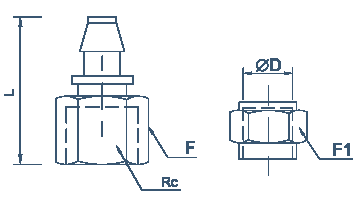

CTCFN
Female
Straight |
 |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
Rc |
F |
L |
F1 |
| CTCFN0401 |
4 |
1/8 |
14 |
23.8 |
8 |
| CTCFN0402 |
1/4 |
17 |
26.8 |
| CTCFN0601 |
6 |
1/8 |
14 |
23.8 |
10 |
| CTCFN0602 |
1/4 |
17 |
26.8 |
| CTCFN0603 |
3/8 |
21 |
27.8 |
| CTCFN0801 |
8 |
1/8 |
14 |
23.8 |
12 |
| CTCFN0802 |
1/4 |
17 |
26.8 |
| CTCFN0803 |
3/8 |
21 |
27.8 |
| CTCFN1002 |
10 |
1/4 |
17 |
28.3 |
14 |
| CTCFN1003 |
3/8 |
21 |
29.3 |
| CTCFN1004 |
1/2 |
24 |
- |
| CTCFN1202 |
12 |
1/4 |
17 |
28.3 |
17 |
| CTCFN1203 |
3/8 |
21 |
29.3 |
| CTCFN1204 |
1/2 |
24 |
- |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
Rc |
F |
L |
F1 |
| CTCFN0401N |
5/32 |
1/8 |
14 |
23.8 |
8 |
| CTCFN0402N |
1/4 |
17 |
26.8 |
| CTCFN0701N |
1/4 |
1/8 |
14 |
23.8 |
10 |
| CTCFN0702N |
1/4 |
17 |
26.8 |
| CTCFN0703N |
3/8 |
21 |
27.8 |
| CTCFN0801N |
5/16 |
1/8 |
14 |
23.8 |
12 |
| CTCFN0802N |
1/4 |
17 |
26.8 |
| CTCFN0803N |
3/8 |
21 |
27.8 |
| CTCFN0902N |
3/8 |
1/4 |
17 |
28.3 |
14 |
| CTCFN0903N |
3/8 |
21 |
29.3 |
| CTCFN0904N |
1/2 |
24 |
- |
| CTCFN1302N |
1/2 |
1/4 |
17 |
28.3 |
17 |
| CTCFN1303N |
3/8 |
21 |
29.3 |
| CTCFN1304N |
1/2 |
24 |
- |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
Rc |
F |
L |
F1 |
| CTCFN0401G |
4 |
1/8 |
14 |
23.8 |
8 |
| CTCFN0402G |
1/4 |
17 |
26.8 |
| CTCFN0601G |
6 |
1/8 |
14 |
23.8 |
10 |
| CTCFN0602G |
1/4 |
17 |
26.8 |
| CTCFN0603G |
3/8 |
21 |
27.8 |
| CTCFN0801G |
8 |
1/8 |
14 |
23.8 |
12 |
| CTCFN0802G |
1/4 |
17 |
26.8 |
| CTCFN0803G |
3/8 |
21 |
27.8 |
| CTCFN1002G |
10 |
1/4 |
17 |
28.3 |
14 |
| CTCFN1003G |
3/8 |
21 |
29.3 |
| CTCFN1004G |
1/2 |
24 |
- |
| CTCFN1202G |
12 |
1/4 |
17 |
28.3 |
17 |
| CTCFN1203G |
3/8 |
21 |
29.3 |
| CTCFN1204G |
1/2 |
24 |
- |
|
