Push In Fittings
Push In Type Compress Type

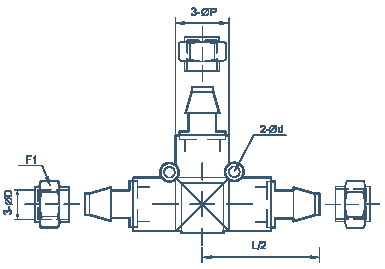

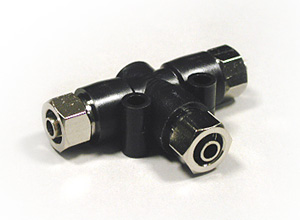

  CTEN   Union Tee
Tube(Metric)
Model D P F1 L/2 H d
CTEN04 4 10 8 22.3 27.8 3.3
CTEN06 6 12 10 25.7 31.2 4.3
CTEN08 8 14 12 29.8 35.8
CTEN10 10 16 14 33.3 41.3
CTEN12 12 21 17 38.5 46.5
Tube(Inch)
Model D P F1 L/2 H d
CTEN04 5/32 10 8 22.3 27.8 3.3
CTEN07 1/4 12 10 25.7 31.2 4.3
CTEN08 5/16 14 12 29.8 35.8
CTEN09 3/8 16 14 33.3 41.3
CTEN13 1/2 21 17 38.5 46.5

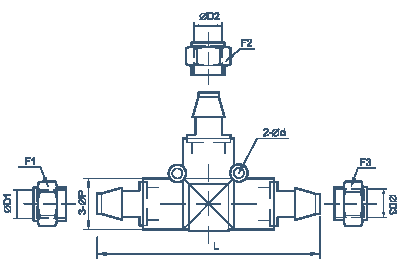

  CTEGN
Tube(Metric)
Model D1 D2 D3 F1 F2 F3 P L H d
CTEGN040406 4 4 6 8 8 10 12 50.4 30.2 4.3
CTEGN040604 6 4 10 8 49.4 31.2
CTEGN060406 6 4 6 10 8 10 51.4 30.2
CTEGN060604 6 4 10 8 50.4 31.2
CTEGN060608 8 12 14 57 33.2
CTEGN060806 8 6 12 10 54.4 35.8
CTEGN080608 8 6 8 12 10 12 59.6 33.2
CTEGN080806 8 6 12 10 57 35.8
CTEGN080810 10 14 16 64.5 39.2
CTEGN081008 10 8 14 12 62.4 41.3
CTEGN100810 10 8 10 14 12 14 66.6 39.2
CTEGN101008 10 8 14 12 64.5 41.3
CTEGN101012 12 17 21 73 42.5
CTEGN101210 12 10 17 14 69 46.5
CTEGN121210 12 17 73 46.5
CTEGN121012 10 12 14 17 77 42.5

Tube(Inch)
Model D1 D2 D3 F1 F2 F3 P L H d
CTEGN040407 5/32 5/32 1/4 8 8 10 12 50.4 30.2 4.3
CTEGN040704 1/4 5/32 10 8 49.4 31.2
CTEGN070407 1/4 5/32 1/4 10 8 10 51.4 30.2
CTEGN070704 1/4 5/32 10 8 50.4 31.2
CTEGN070708 5/16 12 14 57 33.2
CTEGN070807 5/16 1/4 12 10 54.4 35.8
CTEGN080708 5/16 1/4 5/16 12 10 12 59.6 33.2
CTEGN080807 5/16 1/4 12 10 57 35.8
CTEGN080809 3/8 14 16 64.5 39.2
CTEGN080908 3/8 5/16 14 12 62.4 41.3
CTEGN090809 3/8 5/16 3/8 14 12 14 66.6 39.2
CTEGN090908 3/8 5/16 14 12 64.5 41.3
CTEGN090913 1/2 17 21 73 42.5
CTEGN091309 1/2 3/8 17 14 69 46.5
CTEGN131309 1/2 17 73 46.5
CTEGN130913 3/8 1/2 14 17 77 42.5
