Push In Fittings
Push In Type Compress Type

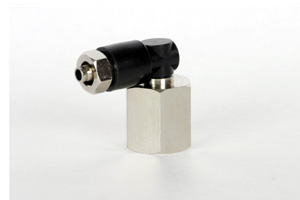

  CTLFN   Female Elbow
ˇiSwivelˇj

Tube(Metric)   -  Thread(PT)

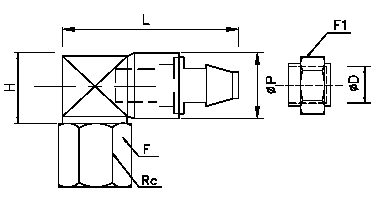

Model D Rc F P L H F1
CTLFN0401 4 1/8 14 10 25 10.5 8
CTLFN0402 1/4 17
CTLFN0601 6 1/8 14 12 29 12.5 10
CTLFN0602 1/4 17
CTLFN0603 3/8 21
CTLFN0801 8 1/8 14 14 32.5 14.5 12
CTLFN0802 1/4 17
CTLFN0803 3/8 21
CTLFN1002 10 1/4 14 16 38 16.5 14
CTLFN1003 3/8 17
CTLFN1004 1/2 21
CTLFN1202 12 1/4 14 21 41 19.5 17
CTLFN1203 3/8 17
CTLFN1204 1/2 21

Tube(Inch)   -  Thread(NPT)
Model D Rc F P L H F1
CTLFN0401N 5/32 1/8 14 10 25 10.5 8
CTLFN0402N 1/4 17
CTLFN0701N 1/4 1/8 14 12 29 12.5 10
CTLFN0702N 1/4 17
CTLFN0703N 3/8 21
CTLFN0801N 5/16 1/8 14 14 32.5 14.5 12
CTLFN0802N 1/4 17
CTLFN0803N 3/8 21
CTLFN0902N 3/8 1/4 14 16 38 16.5 14
CTLFN0903N 3/8 17
CTLFN0904N 1/2 21
CTLFN1302N 1/2 1/4 14 21 41 19.5 17
CTLFN1303N 3/8 17
CTLFN1304N 1/2 21

Tube(Metric)   -  Thread(G)
Model D Rc F P L H F1
CTLFN0401G 4 1/8 14 10 25 10.5 8
CTLFN0402G 1/4 17
CTLFN0601G 6 1/8 14 12 29 12.5 10
CTLFN0602G 1/4 17
CTLFN0603G 3/8 21
CTLFN0801G 8 1/8 14 14 32.5 14.5 12
CTLFN0802G 1/4 17
CTLFN0803G 3/8 21
CTLFN1002G 10 1/4 14 16 38 16.5 14
CTLFN1003G 3/8 17
CTLFN1004G 1/2 21
CTLFN1202G 12 1/4 14 21 41 19.5 17
CTLFN1203G 3/8 17
CTLFN1204G 1/2 21
