| Tube(Metric)
- Thread(PT) |

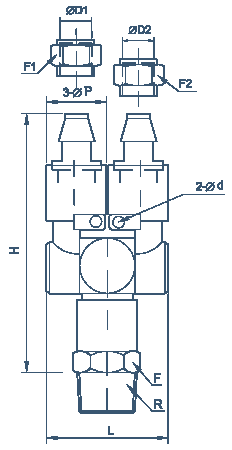

| Model |
 D1 |
D2 |
R |
F |
F1 |
F2 |
P |
L |
H |
d |
| CTXGN0604M5 |
6 |
4 |
M5x0.8 |
12 |
10 |
8 |
12 |
25 |
57.7 |
3.3 |
| CTXGN060401 |
1/8 |
58.7 |
| CTXGN060402 |
1/4 |
14 |
| CTXGN060403 |
3/8 |
17 |
| CTXGN080601 |
8 |
6 |
1/8 |
14 |
12 |
10 |
14 |
29 |
63.8 |
|
| CTXGN080602 |
1/4 |
| CTXGN080603 |
3/8 |
17 |
| CTXGN100802 |
10 |
8 |
1/4 |
14 |
10 |
16 |
33.5 |
69.3 |
4.3 |
| CTXGN100803 |
3/8 |
| CTXGN100804 |
1/2 |
21 |
| -- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
| -- |
-- |
| -- |
-- |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D1 |
D2 |
R |
F |
F1 |
F2 |
P |
L |
H |
d |
| CTXGN07041032 |
1/4 |
5/32 |
10-32UNF |
12 |
10 |
8 |
12 |
25 |
57.7 |
3.3 |
| CTXGN070401N |
1/8 |
58.7 |
| CTXGN070402N |
1/4 |
14 |
| CTXGN070403N |
3/8 |
17 |
| CTXGN080701N |
5/16 |
1/4 |
1/8 |
14 |
12 |
10 |
14 |
29 |
63.8 |
4.3 |
| CTXGN080702N |
1/4 |
| CTXGN080703N |
3/8 |
17 |
| CTXGN090802N |
3/8 |
5/16 |
1/4 |
14 |
10 |
16 |
33.5 |
69.3 |
| CTXGN090803N |
3/8 |
| CTXGN090804N |
1/2 |
21 |
| -- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
| -- |
-- |
| -- |
-- |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D1 |
D2 |
R |
F |
F1 |
F2 |
P |
L |
H |
d |
| CTXGN0604M5 |
6 |
4 |
M5x0.8 |
12 |
10 |
8 |
12 |
25 |
57.7 |
3.3 |
| CTXGN060401G |
1/8 |
58.7 |
| CTXGN060402G |
1/4 |
14 |
| CTXGN060403G |
3/8 |
17 |
| CTXGN080601G |
8 |
6 |
1/8 |
14 |
12 |
10 |
14 |
29 |
63.8 |
4.3 |
| CTXGN080602G |
1/4 |
| CTXGN080603G |
3/8 |
17 |
| CTXGN100802G |
10 |
8 |
1/4 |
14 |
10 |
16 |
33.5 |
69.3 |
| CTXGN100803G |
3/8 |
| CTXGN100804G |
1/2 |
21 |
| -- |
-- |
-- |
-- |
-- |
|
|
-- |
-- |
-- |
-- |
| -- |
-- |
| -- |
-- |
|
