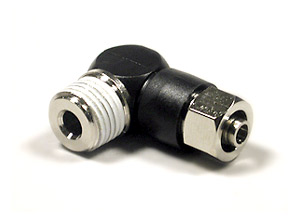

CTOLN Hex.
Holed Elbow |
 |
 |
ˇiSwivelˇj |
|
| Tube(Metric)
- Thread(PT) |

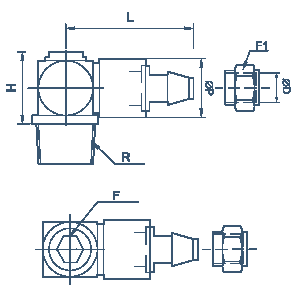

| Model |
 D |
R |
F |
F1 |
P |
L |
H |
| CTOLN04M5 |
4 |
M5x0.8 |
3 |
8 |
10 |
24.3 |
15 |
| CTOLN0401 |
1/8 |
14 |
| CTOLN0402 |
1/4 |
| CTOLN06M5 |
6 |
M5x0.8 |
10 |
12 |
25.7 |
15 |
| CTOLN0601 |
1/8 |
14 |
| CTOLN0602 |
1/4 |
4 |
14 |
27.2 |
17 |
| CTOLN0603 |
3/8 |
6 |
28.7 |
21 |
| CTOLN0801 |
8 |
1/8 |
4 |
12 |
29.8 |
17 |
| CTOLN0802 |
1/4 |
| CTOLN0803 |
3/8 |
6 |
31.3 |
21 |
| CTOLN1001 |
10 |
1/8 |
14 |
16 |
34.3 |
| CTOLN1002 |
1/4 |
| CTOLN1003 |
3/8 |
| CTOLN1202 |
12 |
1/4 |
8 |
17 |
19 |
38 |
25 |
| CTOLN1203 |
3/8 |
|
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
F1 |
P |
L |
H |
| CTOLN041032 |
5/32 |
10-32UNF |
3 |
8 |
10 |
24.3 |
15 |
| CTOLN0401N |
1/8 |
14 |
| CTOLN0402N |
1/4 |
| CTOLN071032 |
1/4 |
10-32UNF |
10 |
12 |
25.7 |
15 |
| CTOLN0701N |
1/8 |
14 |
| CTOLN0702N |
1/4 |
4 |
14 |
27.2 |
17 |
| CTOLN0703N |
3/8 |
6 |
28.7 |
21 |
| CTOLN0801N |
5/16 |
1/8 |
4 |
12 |
29.8 |
17 |
| CTOLN0802N |
1/4 |
| CTOLN0803N |
3/8 |
6 |
31.3 |
21 |
| CTOLN0901N |
3/8 |
1/8 |
14 |
16 |
34.3 |
| CTOLN0902N |
1/4 |
| CTOLN0903N |
3/8 |
| CTOLN1302N |
1/2 |
1/4 |
8 |
17 |
19 |
38 |
25 |
| CTOLN1303N |
3/8 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
F1 |
P |
L |
H |
| CTOLN04M5 |
4 |
M5x0.8 |
3 |
8 |
10 |
24.3 |
15 |
| CTOLN0401G |
1/8 |
14 |
| CTOLN0402G |
1/4 |
| CTOLN06M5 |
6 |
M5x0.8 |
10 |
12 |
25.7 |
15 |
| CTOLN0601G |
1/8 |
14 |
| CTOLN0602G |
1/4 |
4 |
14 |
27.2 |
17 |
| CTOLN0603G |
3/8 |
6 |
28.7 |
21 |
| CTOLN0801G |
8 |
1/8 |
4 |
12 |
29.8 |
17 |
| CTOLN0802G |
1/4 |
| CTOLN0803G |
3/8 |
6 |
31.3 |
21 |
| CTOLN1001G |
10 |
1/8 |
14 |
16 |
34.3 |
| CTOLN1002G |
1/4 |
| CTOLN1003G |
3/8 |
| CTOLN1202G |
12 |
1/4 |
8 |
17 |
19 |
38 |
25 |
| CTOLN1203G |
3/8 |
|
