Push In Fittings
Push In Type
Compress Type

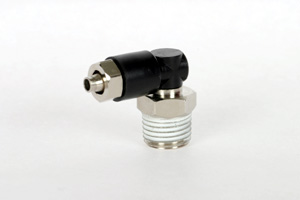

CTLN
Elbow
ˇiSwivelˇj
Tube(Metric) - Thread(PT)

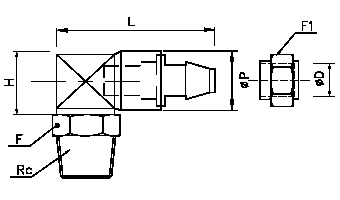

Model
D
R
F
P
L
H
F1
CTLN04M5
4
M5x0.8
8
10
21
10.5
8
CTLN0401
1/8
10
CTLN0402
1/4
14
CTLN06M5
6
M5x0.8
10
12
24
12.5
10
CTLN0601
1/8
CTLN0602
1/4
14
CTLN0603
3/8
17
CTLN0801
8
1/8
14
14
26
14.5
12
CTLN0802
1/4
CTLN0803
3/8
17
CTLN1002
10
1/4
14
16
29
16.5
14
CTLN1003
3/8
17
CTLN1004
1/2
21
CTLN1202
12
1/4
17
21
31
19.5
17
CTLN1203
3/8
CTLN1204
1/2
21
Tube(Inch) - Thread(NPT)
Model
D
R
F
P
L
H
F1
CTLN041032
5/32
10-32UNF
8
10
21
10.5
8
CTLN0401N
1/8
10
CTLN0402N
1/4
14
CTLN071032
1/4
10-32UNF
10
12
24
12.5
10
CTLN0701N
1/8
CTLN0702N
1/4
14
CTLN0703N
3/8
17
CTLN0801N
5/16
1/8
14
14
26
14.5
12
CTLN0802N
1/4
CTLN0803N
3/8
17
CTLN0902N
3/8
1/4
14
16
29
16.5
14
CTLN0903N
3/8
17
CTLN0904N
1/2
21
CTLN1302N
1/2
1/4
17
21
31
19.5
17
CTLN1303N
3/8
CTLN1304N
1/2
21
Tube(Metric) - Thread(G)
Model
D
R
F
P
L
H
F1
CTLN04M5
4
M5x0.8
8
10
21
10.5
8
CTLN0401G
1/8
10
CTLN0402G
1/4
14
CTLN06M5
6
M5x0.8
10
12
24
12.5
10
CTLN0601G
1/8
CTLN0602G
1/4
14
CTLN0603G
3/8
17
CTLN0801G
8
1/8
14
14
26
14.5
12
CTLN0802G
1/4
CTLN0803G
3/8
17
CTLN1001G
10
1/8
14
16
29
16.5
14
CTLN1002G
1/4
17
CTLN1003G
3/8
21
CTLN1202G
12
1/4
17
21
31
19.5
17
CTLN1203G
3/8
CTLN1204G
1/2
21
