Push In Fittings
Push In Type
Compress Type
CTYNS

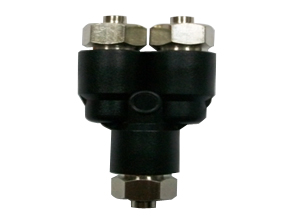

Union Y
¡iFixed Type¡j
Tube(Metric)
Model
H
L
D
d
CTYNS04
20.7
44.5
4
3
CTYNS06
24.7
51.5
6
3.5
CTYNS08
28.7
56.5
8
4
CTYNS10
32.7
60.5
10
4
CTYNS12
38.7
65
12
4
Tube(Inch)
Model
H
L
D
d
CTYNS1/4
24.7
51.5
1/4
3.5
CTYNS5/16
28.7
56.5
5/16
4
CTYNS3/8
32.7
60.5
3/8
4
CTYNS1/2
38.7
65
1/2
4
