Push In Fittings
Push In Type
Compress Type

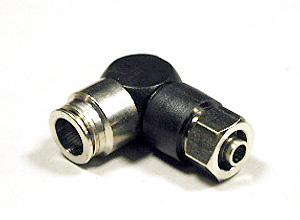

CTVN
Union Blbow
Tube(Metric)
Model
D
P
F
L
CTVN04
4
10
8
24.3
CTVN06
6
12
10
28.7
CTVN08
8
14
12
29.8
CTVN10
10
16
14
34.3
CTVN12
12
19
17
38
Tube(Inch)
Model
D
P
F
L
CTVN04
5/32
10
8
24.3
CTVN07
1/4
12
10
28.7
CTVN08
5/16
14
12
29.8
CTVN09
3/8
16
14
34.3
CTVN13
1/2
19
17
38
CTVGN
Different Dia. Union Elbow
Tube(Metric)
Model
D1
D2
P
F1
F2
L
CTVGN0604
6
4
12
10
8
28.7
CTVGN0806
8
6
14
12
10
CTVGN1006
10
16
14
10
34.3
CTVGN1008
8
12
CTVGN1210
12
10
19
17
14
38
Tube(Inch)
Model
D1
D2
P
F1
F2
L
CTVGN0704
1/4
5/32
12
10
8
28.7
CTVGN0807
5/16
1/4
14
12
10
29.8
CTVGN0907
3/8
16
14
10
34.3
CTVGN0908
3/8
5/16
12
CTVGN1309
1/2
3/8
19
17
14
38
