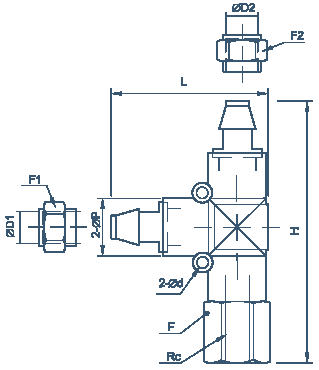

CTDGFN |
 |
 |
| ˇiSwivelˇj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D1 |
D2 |
Rc |
F |
F1 |
F2 |
P |
L |
H |
d |
| CTDGFN040601 |
4 |
6 |
1/8 |
14 |
8 |
10 |
12 |
30.2 |
56.7 |
4.3 |
| CTDGFN040602 |
1/4 |
17 |
57.7 |
| CTDGFN040603 |
3/8 |
14 |
58.7 |
| CTDGFN060401 |
6 |
4 |
1/8 |
14 |
10 |
8 |
31.2 |
55.7 |
| CTDGFN060402 |
1/4 |
17 |
56.7 |
| CTDGFN060403 |
3/8 |
14 |
57.7 |
| CTDGFN060801 |
6 |
8 |
1/8 |
17 |
10 |
12 |
14 |
33.2 |
62.8 |
| CTDGFN060802 |
1/4 |
21 |
65.8 |
| CTDGFN060803 |
3/8 |
14 |
66.8 |
| CTDGFN080601 |
8 |
6 |
1/8 |
17 |
12 |
10 |
35.8 |
60.2 |
| CTDGFN080602 |
1/4 |
21 |
63.2 |
| CTDGFN080603 |
3/8 |
14 |
64.2 |
| CTDGFN081002 |
8 |
10 |
1/4 |
17 |
12 |
14 |
16 |
39.2 |
73.3 |
| CTDGFN081003 |
3/8 |
21 |
74.3 |
| CTDGFN100802 |
10 |
8 |
1/4 |
17 |
14 |
12 |
41.3 |
71.2 |
| CTDGFN100803 |
3/8 |
72.1 |
| CTDGFN101202 |
10 |
12 |
1/4 |
21 |
14 |
17 |
21 |
42.5 |
79 |
| CTDGFN101203 |
3/8 |
80 |
| CTDGFN121002 |
12 |
10 |
1/4 |
17 |
14 |
46.5 |
75 |
| CTDGFN121003 |
3/8 |
76 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D1 |
D2 |
Rc |
F |
F1 |
F2 |
P |
L |
H |
d |
| CTDGFN040601G |
4 |
6 |
1/8 |
14 |
8 |
10 |
12 |
30.2 |
56.7 |
4.3 |
| CTDGFN040602G |
1/4 |
17 |
57.7 |
| CTDGFN040603G |
3/8 |
14 |
58.7 |
| CTDGFN060401G |
6 |
4 |
1/8 |
14 |
10 |
8 |
31.2 |
55.7 |
| CTDGFN060402G |
1/4 |
17 |
56.7 |
| CTDGFN060403G |
3/8 |
14 |
57.7 |
| CTDGFN060801G |
6 |
8 |
1/8 |
17 |
10 |
12 |
14 |
33.2 |
62.8 |
| CTDGFN060802G |
1/4 |
21 |
65.8 |
| CTDGFN060803G |
3/8 |
14 |
66.8 |
| CTDGFN080601G |
8 |
6 |
1/8 |
17 |
12 |
10 |
35.8 |
60.2 |
| CTDGFN080602G |
1/4 |
21 |
63.2 |
| CTDGFN080603G |
3/8 |
14 |
64.2 |
| CTDGFN081002G |
8 |
10 |
1/4 |
17 |
12 |
14 |
16 |
39.2 |
73.3 |
| CTDGFN081003G |
3/8 |
21 |
74.3 |
| CTDGFN100802G |
10 |
8 |
1/4 |
17 |
14 |
12 |
41.3 |
71.2 |
| CTDGFN100803G |
3/8 |
72.1 |
| CTDGFN101202G |
10 |
12 |
1/4 |
21 |
14 |
17 |
21 |
42.5 |
79 |
| CTDGFN101203G |
3/8 |
80 |
| CTDGFN121002G |
12 |
10 |
1/4 |
17 |
14 |
46.5 |
75 |
| CTDGFN121003G |
3/8 |
76 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D1 |
D2 |
Rc |
F |
F1 |
F2 |
P |
L |
H |
d |
| CTDGFN040701N |
4 |
6 |
1/8 |
14 |
8 |
10 |
12 |
30.2 |
56.7 |
4.3 |
| CTDGFN040702N |
1/4 |
17 |
57.7 |
| CTDGFN040703N |
3/8 |
14 |
58.7 |
| CTDGFN070401N |
6 |
4 |
1/8 |
14 |
10 |
8 |
31.2 |
55.7 |
| CTDGFN070402N |
1/4 |
17 |
56.7 |
| CTDGFN070403N |
3/8 |
14 |
57.7 |
| CTDGFN070801N |
6 |
8 |
1/8 |
17 |
10 |
12 |
14 |
33.2 |
62.8 |
| CTDGFN070802N |
1/4 |
21 |
65.8 |
| CTDGFN070803N |
3/8 |
14 |
66.8 |
| CTDGFN080701N |
8 |
6 |
1/8 |
17 |
12 |
10 |
35.8 |
60.2 |
| CTDGFN080702N |
1/4 |
21 |
63.2 |
| CTDGFN080703N |
3/8 |
14 |
64.2 |
| CTDGFN080902N |
8 |
10 |
1/4 |
17 |
12 |
14 |
16 |
39.2 |
73.3 |
| CTDGFN080903N |
3/8 |
21 |
74.3 |
| CTDGFN090802N |
10 |
8 |
1/4 |
17 |
14 |
12 |
41.3 |
71.2 |
| CTDGFN090803N |
3/8 |
72.1 |
| CTDGFN091302N |
10 |
12 |
1/4 |
21 |
14 |
17 |
21 |
42.5 |
79 |
| CTDGFN091303N |
3/8 |
80 |
| CTDGFN130902N |
12 |
10 |
1/4 |
17 |
14 |
46.5 |
75 |
| CTDGFN130903N |
3/8 |
76 |
|
