Push In Fittings
Push In Type Compress Type

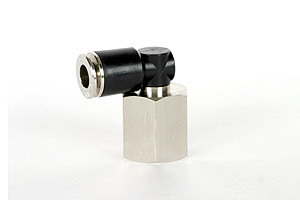

  CTLF   Female Elbow

Ħi Swivel Ħj
Tube(Metric)   -  Thread(PT)
Model D R F P L H
CTLF0401 4 1/8 14 10 21 10.5
CTLF0402 1/4 17
CTLF0601 6 1/8 14 12 24 12.5
CTLF0602 1/4 17
CTLF0603 3/8 21
CTLF0801 8 1/8 14 14 26 14.5
CTLF0802 1/4 17
CTLF0803 3/8 21
CTLF1002 10 1/4 14 16 29 16.5
CTLF1003 3/8 17
CTLF1004 1/2 21
CTLF1202 12 1/4 14 21 31 19.5
CTLF1203 3/8 17
CTLF1204 1/2 21

Tube(Inch)   -  Thread(NPT)
Model D R F P L H
CTLF0401N 5/32 1/8 14 10 21 10.5
CTLF0402N 1/4 17
CTLF0701N 1/4 1/8 14 12 24 12.5
CTLF0702N 1/4 17
CTLF0703N 3/8 21
CTLF0801N 5/16 1/8 14 14 26 14.5
CTLF0802N 1/4 17
CTLF0803N 3/8 21
CTLF0902N 3/8 1/4 14 16 29 16.5
CTLF0903N 3/8 17
CTLF0904N 1/2 21
CTLF1302N 1/2 1/4 14 21 31 19.5
CTLF1303N 3/8 17
CTLF1304N 1/2 21

Tube(Metric)   -  Thread(G)
Model D R F P L H
CTLF0401G 4 1/8 14 10 21 10.5
CTLF0402G 1/4 17
CTLF0601G 6 1/8 14 11 24 12.5
CTLF0602G 1/4 17
CTLF0603G 3/8 21
CTLF0801G 8 1/8 14 14 26 14.5
CTLF0802G 1/4 17
CTLF0803G 3/8 21
CTLF1002G 10 1/4 14 16 29 16.5
CTLF1003G 3/8 17
CTLF1004G 1/2 21
CTLF1202G 12 1/4 14 21 31 19.5
CTLF1203G 3/8 17
CTLF1204G 1/2 21
