Push In Fittings
Push In Type Compress Type

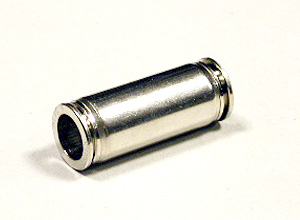

  CTU  Union Straight
Tube (Metric)
Model D P L
CTU03 3 -- -
CTU04 4 8
CTU05 5 -- -
CTU06 6 10
CTU08 8 12

32.6

CTU10 10 14
CTU12 12 17 37.6
Tube (Inch)
Model D P L
CTU032 1/8 -- -
CTU04 5/32 8 31.6
CTU047 3/16 -- -
CTU07 1/4 10 32.6
CTU08 5/16 12

32.6

CTU09 3/8 14 36.6
CTU13 1/2 17 37.6

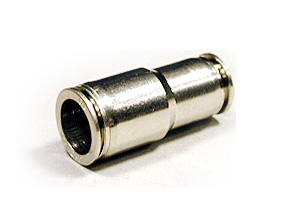

  CTUG Different Dia. Union Straight

Tube (Metric)
Model D1 D2 P1 P2 L
CTUG06-04 6 4 10 8 32.1
CTUG0806 8 6 12 10 32.6
CTUG1006 10 6 14 10 34.6
CTUG1008 10 8 14 12 34.6
CTUG1012 12 10 17 14

37.1

Tube (Inch)
Model D1 D2 P1 P2 L
CTUG0704 1/4 5/32 10 8 32.1
CTUG0807 5/16 1/4 12 10 32.6
CTUG0907 3/8 1/4 14 10 34.6
CTUG0908 3/8 5/16 14 12 34.6
CTUG1309 1/2 3/8 17 14

37.1
