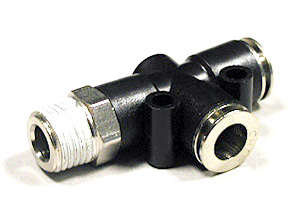

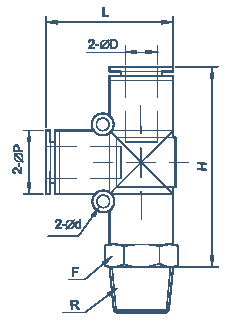

CTD
Branch
Tee |
 |
 |
| Ħi
Swivel Ħj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
d |
| CTD04M5 |
4 |
M5x0.8 |
10 |
10 |
22.5 |
34 |
3.3 |
| CTD0401 |
1/8 |
35 |
4.3 |
| CTD0402 |
1/4 |
14 |
| CTD06M5 |
6 |
M5x0.8 |
12 |
12 |
25 |
38.5 |
| CTD0601 |
1/8 |
39.5 |
| CTD0602 |
1/4 |
14 |
| CTD0603 |
3/8 |
17 |
| CTD0801 |
8 |
1/8 |
14 |
14 |
27 |
42.5 |
| CTD0802 |
1/4 |
| CTD0803 |
3/8 |
|
| CTD1002 |
10 |
1/4 |
17 |
16 |
31 |
47 |
| CTD1003 |
3/8 |
| CTD1004 |
1/2 |
21 |
| CTD1202 |
12 |
1/4 |
19 |
21 |
35.5 |
55.5 |
| CTD1203 |
3/8 |
21 |
| CTD1204 |
1/2 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
d |
| CTD041032 |
5/32 |
10-32UNF |
10 |
10 |
22.5 |
34 |
3.3 |
| CTD0401N |
1/8 |
35 |
4.3 |
| CTD0402N |
1/4 |
14 |
| CTD071032 |
1/4 |
10-32UNF |
12 |
12 |
25 |
38.5 |
| CTD0701N |
1/8 |
39.5 |
| CTD0702N |
1/4 |
14 |
| CTD0703N |
3/8 |
17 |
| CTD0801N |
5/16 |
1/8 |
14 |
14 |
27 |
42.5 |
| CTD0802N |
1/4 |
| CTD0803N |
3/8 |
17 |
| CTD0902N |
3/8 |
1/4 |
16 |
31 |
47 |
| CTD0903N |
3/8 |
| CTD0904N |
1/2 |
21 |
| CTD1302N |
1/2 |
1/4 |
19 |
21 |
35.5 |
55.5 |
| CTD1303N |
3/8 |
21 |
| CTD1304N |
1/2 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
d |
| CTD04M5 |
4 |
M5x0.8 |
10 |
10 |
22.5 |
34 |
3.3 |
| CTD0401G |
1/8 |
35 |
4.3 |
| CTD0402G |
1/4 |
14 |
| CTD06M5 |
6 |
M5x0.8 |
12 |
12 |
25 |
38.5 |
| CTD0601G |
1/4 |
39.5 |
| CTD0602G |
1/4 |
14 |
| CTD0603G |
3/8 |
17 |
| CTD0801G |
8 |
1/8 |
14 |
14 |
27 |
42.5 |
| CTD0802G |
1/4 |
| CTD0803G |
3/8 |
17 |
| CTD1002G |
10 |
1/4 |
16 |
31 |
47 |
| CTD1003G |
3/8 |
| CTD1004G |
1/2 |
21 |
| CTD1202G |
12 |
1/4 |
19 |
21 |
35.5 |
55.5 |
| CTD1203G |
3/8 |
21 |
| CTD1204G |
1/2 |
|
