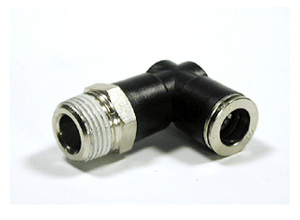

CTBL
|
 |
 |
| Ħi
Swivel Ħj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
d |
| CTBL04M5 |
4 |
M5x0.8 |
10 |
10 |
22.5 |
24.5 |
3.3 |
| CTBL0401 |
1/8 |
25.5 |
4.3 |
| CTBL0402 |
1/4 |
14 |
| CTBL06M5 |
6 |
M5x0.8 |
12 |
12 |
25 |
26.5 |
| CTBL0601 |
1/8 |
27.5 |
| CTBL0602 |
1/4 |
14 |
| CTBL0603 |
3/8 |
17 |
| CTBL0801 |
8 |
1/8 |
14 |
14 |
27 |
30 |
| CTBL0802 |
1/4 |
| CTBL0803 |
3/8 |
17 |
| CTBL1002 |
10 |
1/4 |
16 |
31 |
34.5 |
| CTBL1003 |
3/8 |
| CTBL1004 |
1/2 |
21 |
| CTBL1202 |
12 |
1/4 |
19 |
21 |
35.5 |
38.5 |
| CTBL1203 |
3/8 |
21 |
| CTBL1204 |
1/2 |
|
| |
| Tube(Metric)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
d |
| CTBL041032 |
5/32 |
10-32UNF |
10 |
10 |
22.5 |
24.5 |
3.3 |
| CTBL0401N |
1/8 |
25.5 |
4.3 |
| CTBL0402N |
1/4 |
14 |
| CTBL071032 |
1/4 |
10-32UNF |
12 |
12 |
25 |
26.5 |
| CTBL0701N |
1/8 |
27.5 |
| CTBL0702N |
1/4 |
14 |
| CTBL0703N |
3/8 |
17 |
| CTBL0801N |
5/16 |
1/8 |
14 |
14 |
27 |
30 |
| CTBL0802N |
1/4 |
| CTBL0803N |
3/8 |
17 |
| CTBL0902N |
3/8 |
1/4 |
16 |
31 |
34.5 |
| CTBL0903N |
3/8 |
| CTBL0904N |
1/2 |
21 |
| CTBL1302N |
1/2 |
1/4 |
19 |
21 |
35.5 |
38.5 |
| CTBL1303N |
3/8 |
21 |
| CTBL1304N |
1/2 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
d |
| CTBL04M5 |
4 |
M5x0.8 |
10 |
10 |
22.5 |
24.5 |
3.3 |
| CTBL0401G |
1/8 |
25.5 |
4.3 |
| CTBL0402G |
1/4 |
14 |
| CTBL06M5 |
6 |
M5x0.8 |
12 |
12 |
25 |
26.5 |
| CTBL0601G |
1/8 |
27.5 |
| CTBL0602G |
1/4 |
14 |
| CTBL0603G |
3/8 |
17 |
| CTBL0801G |
8 |
1/8 |
14 |
14 |
27 |
30 |
| CTBL0802G |
1/4 |
| CTBL0803G |
3/8 |
17 |
| CTBL1002G |
10 |
1/4 |
16 |
31 |
34.5 |
| CTBL1003G |
3/8 |
| CTBL1004G |
1/2 |
21 |
| CTBL1202G |
12 |
1/4 |
19 |
21 |
35.5 |
38.5 |
| CTBL1203G |
3/8 |
21 |
| CTBL1204G |
1/2 |
|
