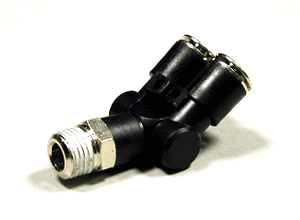

CTX Branch
Y |
 |
 |
Ħi
Swivel Ħj |
|
|
| Tube(Metric)
- Thread(PT) |

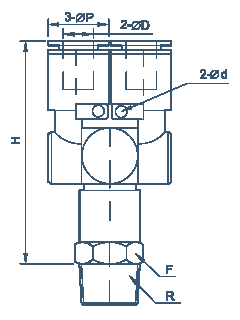

| Style |
 D |
R |
F |
P |
L |
H |
d |
| CTX04M5 |
4 |
M5x0.8 |
10 |
12 |
25 |
46 |
3.3 |
| CTX0401 |
1/8 |
47 |
| CTX0402 |
1/4 |
14 |
46 |
| CTX06M5 |
6 |
M5x0.8 |
12 |
| CTX0601 |
1/8 |
47 |
| CTX0602 |
1/4 |
14 |
| CTX0603 |
3/8 |
17 |
|
| CTX0801 |
8 |
1/8 |
14 |
14 |
29 |
49 |
| CTX0802 |
1/4 |
| CTX0803 |
3/8 |
17 |
| CTX1002 |
10 |
1/4 |
16 |
33.5 |
59 |
4.3 |
| CTX1003 |
3/8 |
| CTX1004 |
1/2 |
21 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Style |
D |
R |
F |
P |
L |
H |
d |
| CTX041032 |
5/32 |
10-32UNF |
10 |
12 |
25 |
46 |
3.3 |
| CTX0401N |
1/8 |
47 |
| CTX0402N |
1/4 |
14 |
46 |
| CTX071032 |
1/4 |
10-32UNF |
12 |
| CTX0701N |
1/8 |
47 |
| CTX0702N |
1/4 |
14 |
| CTX0703N |
3/8 |
17 |
|
| CTX0801N |
5/16 |
1/8 |
14 |
14 |
29 |
49 |
| CTX0802N |
1/4 |
| CTX0803N |
3/8 |
17 |
| CTX0902N |
3/8 |
1/4 |
16 |
33.5 |
59 |
4.3 |
| CTX0903N |
3/8 |
| CTX0904N |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Style |
D |
R |
F |
P |
L |
H |
d |
| CTX04M5 |
4 |
M5x0.8 |
10 |
12 |
25 |
46 |
3.3 |
| CTX0401G |
1/8 |
47 |
| CTX0402G |
1/4 |
14 |
46 |
| CTX06M5 |
6 |
M5x0.8 |
12 |
| CTX0601G |
1/8 |
47 |
| CTX0602G |
1/4 |
14 |
| CTX0603G |
3/8 |
17 |
|
| CTX0801G |
8 |
1/8 |
14 |
14 |
29 |
49 |
| CTX0802G |
1/4 |
| CTX0803G |
3/8 |
17 |
| CTX1002G |
10 |
1/4 |
16 |
33.5 |
59 |
4.3 |
| CTX1003G |
3/8 |
| CTX1004G |
1/2 |
21 |
|
| |
