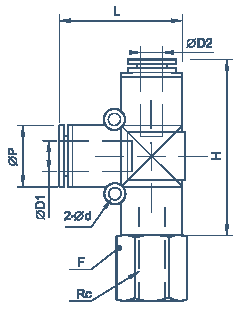

CTDGF Different
Dia. Female Branch Tee |
 |
 |
| Ħi
Swivel Ħj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D1 |
D2 |
Rc |
F |
P |
L |
H |
d |
| CTDGF040601 |
4 |
6 |
1/8 |
14 |
12 |
27.5 |
47.5 |
4.3 |
| CTDGF040602 |
1/4 |
17 |
50.5 |
| CTDGF040603 |
3/8 |
21 |
51.5 |
| CTDGF060401 |
6 |
4 |
1/8 |
14 |
40 |
| CTDGF060402 |
1/4 |
17 |
43 |
| CTDGF060403 |
3/8 |
21 |
45 |
| CTDGF060801 |
6 |
8 |
1/8 |
14 |
14 |
29.5 |
50.5 |
| CTDGF060802 |
1/4 |
17 |
53.5 |
| CTDGF060803 |
3/8 |
21 |
54.5 |
| CTDGF080601 |
8 |
6 |
1/8 |
14 |
48 |
| CTDGF080602 |
1/4 |
17 |
49 |
| CTDGF080603 |
3/8 |
21 |
48 |
| CTDGF081002 |
8 |
10 |
1/4 |
17 |
16 |
33.5 |
65.5 |
| CTDGF081003 |
3/8 |
21 |
66.5 |
| CTDGF100802 |
10 |
8 |
1/4 |
17 |
51 |
| CTDGF100803 |
3/8 |
21 |
52 |
| CTDGF101202 |
10 |
12 |
1/4 |
21 |
21 |
38 |
86.5 |
| CTDGF101203 |
3/8 |
87.5 |
| CTDGF121002 |
12 |
10 |
1/4 |
63 |
| CTDGF121003 |
3/8 |
64 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D1 |
D2 |
Rc |
F |
P |
L |
H |
d |
| CTDGF040601G |
4 |
6 |
1/8 |
14 |
12 |
27.5 |
47.5 |
4.3 |
| CTDGF040602G |
1/4 |
17 |
50.5 |
| CTDGF040603G |
3/8 |
21 |
51.5 |
| CTDGF060401G |
6 |
4 |
1/8 |
14 |
40 |
| CTDGF060402G |
1/4 |
17 |
43 |
| CTDGF060403G |
3/8 |
21 |
45 |
| CTDGF060801G |
6 |
8 |
1/8 |
14 |
14 |
29.5 |
50.5 |
| CTDGF060802G |
1/4 |
17 |
53.5 |
| CTDGF060803G |
3/8 |
21 |
54.5 |
| CTDGF080601G |
8 |
6 |
1/8 |
14 |
48 |
| CTDGF080602G |
1/4 |
17 |
49 |
| CTDGF080603G |
3/8 |
21 |
48 |
| CTDGF081002G |
8 |
10 |
1/4 |
17 |
16 |
33.5 |
65.5 |
| CTDGF081003G |
3/8 |
21 |
66.5 |
| CTDGF100802G |
10 |
8 |
1/4 |
17 |
51 |
| CTDGF100803G |
3/8 |
21 |
52 |
| CTDGF101202G |
10 |
12 |
1/4 |
21 |
21 |
38 |
86.5 |
| CTDGF101203G |
3/8 |
87.5 |
| CTDGF121002G |
12 |
10 |
1/4 |
63 |
| CTDGF121003G |
3/8 |
64 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D1 |
D2 |
Rc |
F |
P |
L |
H |
d |
| CTDGF040701N |
5/32 |
1/4 |
1/8 |
14 |
12 |
27.5 |
47.5 |
4.3 |
| CTDGF040702N |
1/4 |
17 |
50.5 |
| CTDGF040703N |
3/8 |
21 |
51.5 |
| CTDGF070401N |
1/4 |
5/32 |
1/8 |
14 |
40 |
| CTDGF070402N |
1/4 |
17 |
43 |
| CTDGF070403N |
3/8 |
21 |
45 |
| CTDGF070801N |
1/4 |
5/16 |
1/8 |
17 |
14 |
29.5 |
50.5 |
| CTDGF070802N |
1/4 |
21 |
53.5 |
| CTDGF070803N |
3/8 |
21 |
54.5 |
| CTDGF080701N |
5/16 |
1/4 |
1/8 |
17 |
48 |
| CTDGF080702N |
1/4 |
14 |
49 |
| CTDGF080703N |
3/8 |
21 |
48 |
| CTDGF080902N |
5/16 |
3/8 |
1/4 |
17 |
16 |
33.5 |
65.5 |
| CTDGF080903N |
3/8 |
21 |
66.5 |
| CTDGF090802N |
3/8 |
5/16 |
1/4 |
17 |
51 |
| CTDGF090803N |
3/8 |
21 |
52 |
| CTDGF091302N |
3/8 |
1/2 |
1/4 |
21 |
21 |
38 |
86.5 |
| CTDGF091303N |
3/8 |
87.5 |
| CTDGF130902N |
1/2 |
3/8 |
1/4 |
63 |
| CTDGF130903N |
3/8 |
64 |
|
