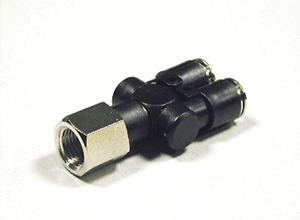

CTXFG Different
Dia. Female Branch Y |
 |
 |
| Ħi
Swivel Ħj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Style |
 D |
R |
F |
P |
L |
H |
d |
| CTXFG04M5 |
4 |
M5x0.8 |
10 |
12 |
25 |
46 |
3.3 |
| CTXFG0401 |
1/8 |
47 |
| CTXFG0402 |
1/4 |
14 |
46 |
| CTXFG06M5 |
6 |
M5x0.8 |
12 |
| CTXFG0601 |
1/8 |
47 |
| CTXFG0602 |
1/4 |
14 |
| CTXFG0603 |
3/8 |
17 |
|
| CTXFG0801 |
8 |
1/8 |
14 |
14 |
29 |
49 |
| CTXFG0802 |
1/4 |
| CTXFG0803 |
3/8 |
17 |
| CTXFG1002 |
10 |
1/4 |
16 |
33.5 |
59 |
4.3 |
| CTXFG1003 |
3/8 |
| CTXFG1004 |
1/2 |
21 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Style |
D |
R |
F |
P |
L |
H |
d |
| CTXFG041032 |
5/32 |
10-32UNF |
10 |
12 |
25 |
46 |
3.3 |
| CTXFG0401N |
1/8 |
47 |
| CTXFG0402N |
1/4 |
14 |
46 |
| CTXFG071032 |
1/4 |
10-32UNF |
12 |
| CTXFG0701N |
1/8 |
47 |
| CTXFG0702N |
1/4 |
14 |
| CTXFG0703N |
3/8 |
17 |
|
| CTXFG0801N |
5/16 |
1/8 |
14 |
14 |
29 |
49 |
| CTXFG0802N |
1/4 |
| CTXFG0803N |
3/8 |
17 |
| CTXFG0902N |
3/8 |
1/4 |
16 |
33.5 |
59 |
4.3 |
| CTXFG0903N |
3/8 |
| CTXFG0904N |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Style |
D |
R |
F |
P |
L |
H |
d |
| CTXFG04M5 |
4 |
M5x0.8 |
10 |
12 |
25 |
46 |
3.3 |
| CTXFG0401G |
1/8 |
47 |
| CTXFG0402G |
1/4 |
14 |
46 |
| CTXFG06M5 |
6 |
M5x0.8 |
12 |
| CTXFG0601G |
1/8 |
47 |
| CTXFG0602G |
1/4 |
14 |
| CTXFG0603G |
3/8 |
17 |
|
| CTXFG0801G |
8 |
1/8 |
14 |
14 |
29 |
49 |
| CTXFG0802G |
1/4 |
| CTXFG0803G |
3/8 |
17 |
| CTXFG1002G |
10 |
1/4 |
16 |
33.5 |
59 |
4.3 |
| CTXFG1003G |
3/8 |
| CTXFG1004G |
1/2 |
21 |
|
| |
