Push In Fittings
Push In Type Compress Type

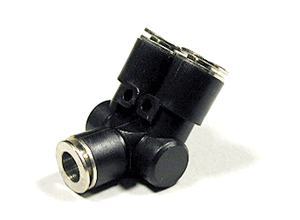

  CTY   Union Y
Ħi Swivel Ħj
Tube(Metric)
Model D P L H d
CTY04 4 10 25 45 3.3
CTY06 6 12 25 45
CTY08 8 14 29 47.5
CTY10 10 16 34.5 55 4.3
-- - - - -
Tube(Inch)
Model D P L H d
CTY04 5/32 10 25 45 3.3
CTY07 1/4 12 25 45
CTY08 5/16 14 29 47.5
CTY09 3/8 16 34.5 55 4.3
-- - - - -

  CTYG   Different Dia. Union Y
Ħi Swivel Ħj
Tube(Metric)
Model D1 D2 P L H d
CTYG0604 6 4 12 25 45 3.3
CTYG0806 8 6 14 29 47.5
CTYG1006 10 6 16 34.5 55 4.3
CTYG1008 10 8 16 43.5 55
-- - - - - -
Tube(Inch)
Model D1 D2 P L H d
CTYG0704 1/4 5/32 12 25 45 3.3
CTYG0807 5/16 1/4 14 29 47.5
CTYG0907 3/8 1/4 16 34.5 55 4.3
CTYG0908 3/8 5/16 16 34.5 55
-- - - - - -
