Push In Fittings
Push In Type Compress Type

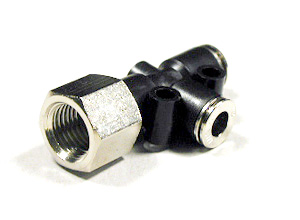

  CTDF   Female Branch Tee
Ħi Swivel Ħj
Tube(Metric)   -  Thread(PT)

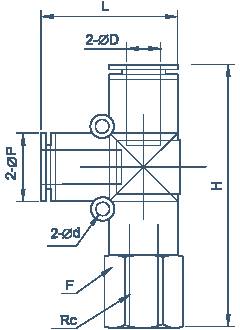

Model D Rc F P L H d
CTDF0401 4 1/8 14 10 22.5 40 3.3
CTDF0402 1/4 17 43 4.3
CTDF0601 6 1/8 14 12 25 45
CTDF0602 1/4 17 48
CTDF0603 3/8 21 49
CTDF0801 8 1/8 14 14 27 48
CTDF0802 1/4 17 51
CTDF0803 3/8 21 52
CTDF1002 10 1/4 17 16 31 63
CTDF1003 3/8 21 64
CTDF1202 12 1/4 21 35.5 84
CTDF1203 3/8 85

Tube(Inch)   -  Thread(NPT)
Model D Rc F P L H d
CTDF0401N 5/32 1/8 14 10 22.5 40 4.3
CTDF0402N 1/4 17 43
CTDF0701N 1/4 1/8 14 12 25 45
CTDF0702N 1/4 17 48
CTDF0703N 3/8 21 49
CTDF0801N 5/16 1/8 14 14 27 48
CTDF0802N 1/4 17 51
CTDF0803N 3/8 21 52
CTDF0902N 3/8 1/4 17 16 31 63
CTDF0903N 3/8 21 64
CTDF1302N 1/2 1/4 21 35.5 84
CTDF1303N 3/8 85

Tube(Metric)   -  Thread(G)
Model D Rc F P L H d
CTDF0401G 4 1/8 14 10 22.5 40 3.3
CTDF0402G 1/4 17 43 4.3
CTDF0601G 6 1/8 14 12 25 45
CTDF0602G 1/4 17 48
CTDF0603G 3/8 21 49
CTDF0801G 8 1/8 14 14 27 48
CTDF0802G 1/4 17 51
CTDF0803G 3/8 21 52
CTDF1002G 10 1/4 17 16 31 63
CTDF1003G 3/8 21 64
CTDF1202G 12 1/4 21 35.5 84
CTDF1203G 3/8 85
