  Automatic Drain Valves



For Compressed Air Pipeline

1. Corrosion Resistant, Rust Proof, Longest Service Life
2. No Leaking, No Clogging And With High Efficiency

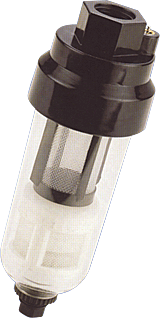

Model
CHG-100S
Size
60 x 168 mm
Inlet
1/2 PT
Outlet
1/8 PT
Opetating Pressure
0.5~9.9 (kg/c㎡)
Ambient Temperature
5 ~ 60℃
Bowl
PC
Weight
304 g

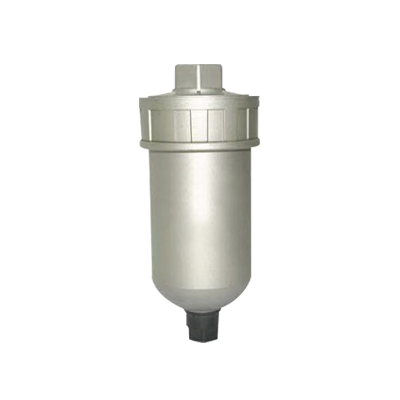

Model
ADV 400
Size
86 x 194mm
Inlet
1/2 PT, NPT, G
Outlet
3/8 PT
Max. Working Pressure.
1.3MPa(1~13kg/c㎡)
Max. Supply Pressure.
1.7MPa(17kg/c㎡)
Ambient Temperature
0 ~ 60℃
Bowl
Aluminum
Weight
745 g





Application

Air Tank Separator Air Dryer Air Filter Drop Leg
