  Automatic Drainer - CHG Series




CHG Series

1. Application for all kind of air filters, compressed air filters.
2. Customer`s Design and OEM are welcome
Operating pressure: 0 ~ 9 kg / c㎡
Proof pressure : 17 kg/c㎡
Ambient temperature : + 10 ℃ ~ + 60 ℃

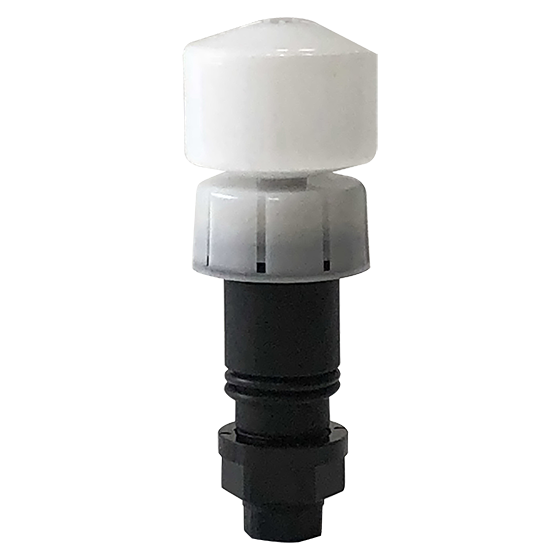

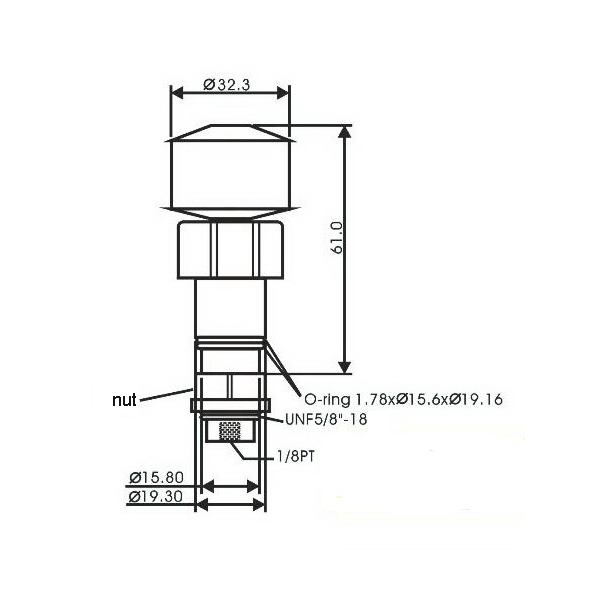

Model : CHG-300A

Size : H61mm x W32.3mm
Fit for : SMC 3000

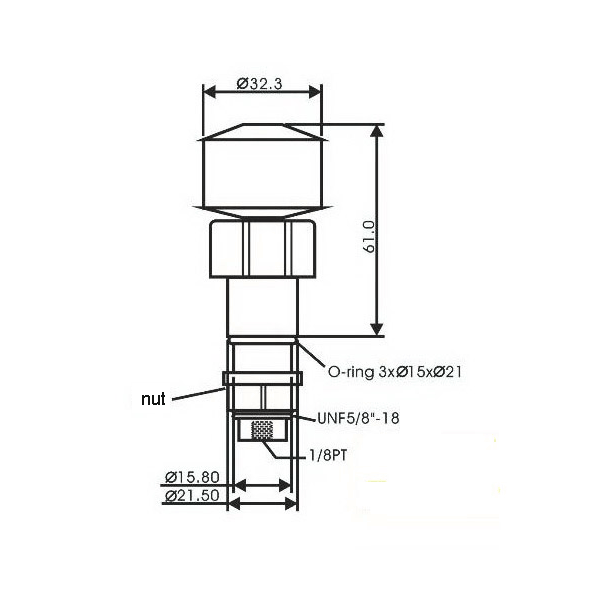

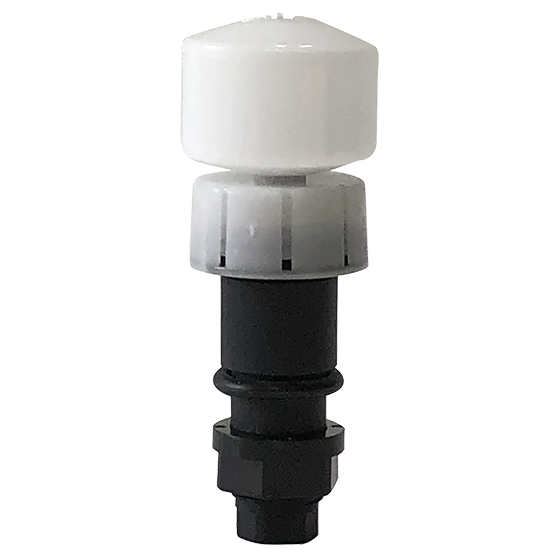

Model : CHG-300B

Size : H61mm x W32.3mm
Fit for : FOWARD

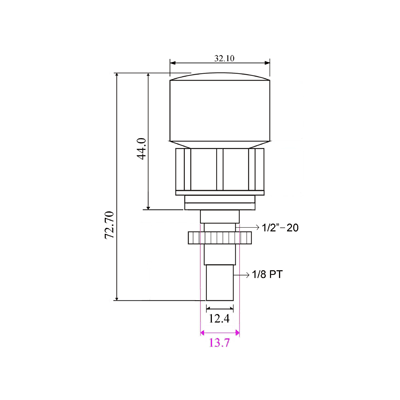

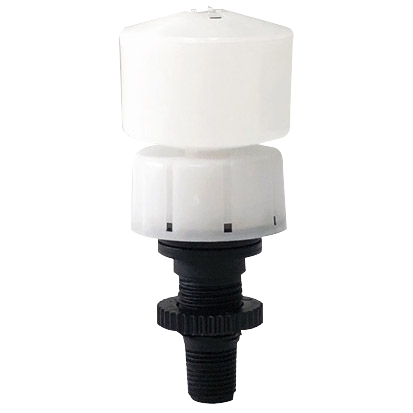

Model : CHG-300W

Size : H44mm x W31.5mm
Fit for : MP

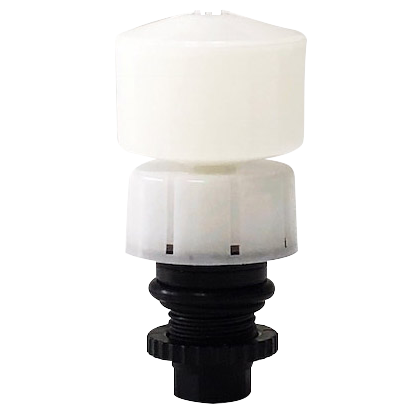

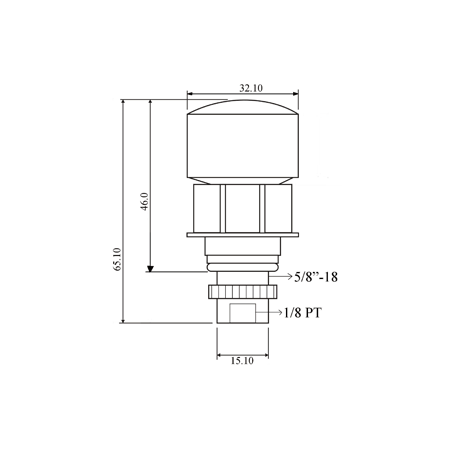

Model : CHG-300X

Size : H46mm x W31.5mm
Fit for : KOGANEI

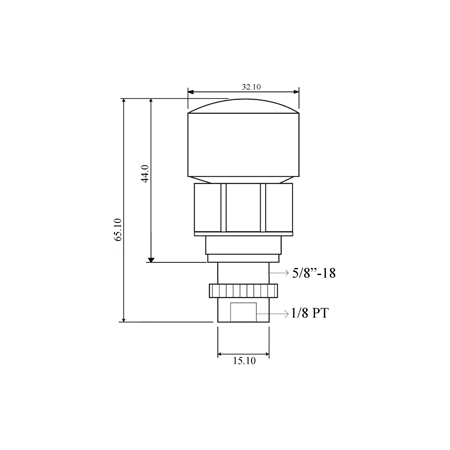

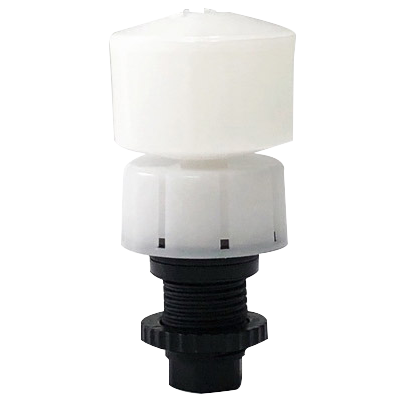

Model : CHG-300Y

Size : H44mm x W31.5mm
Fit for : NORGREN. MP

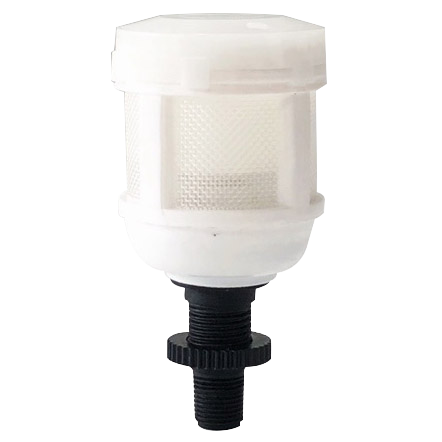

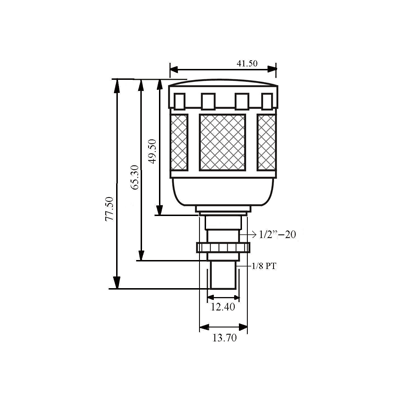

Model : CHG-400W

Size : H49.5mm x W41mm
Fit for : MP

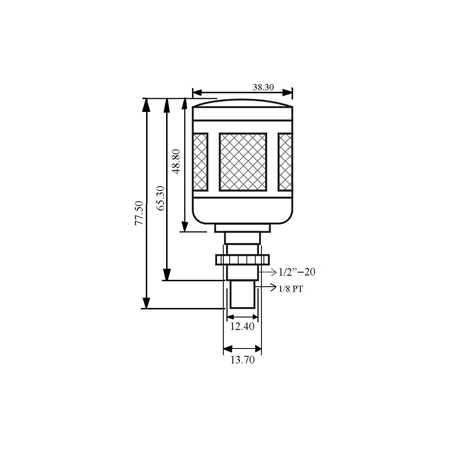

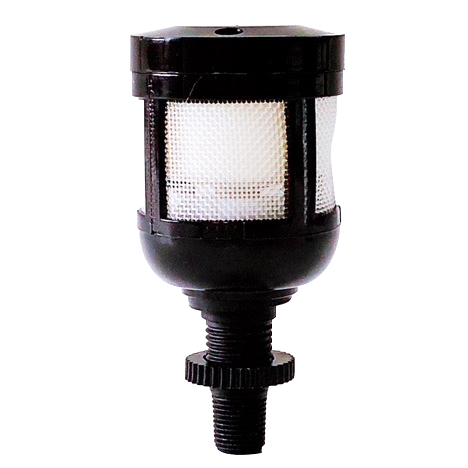

Model : CHG-401B

Size : H48mm x W38.5mm
Fit for : WILKERSON

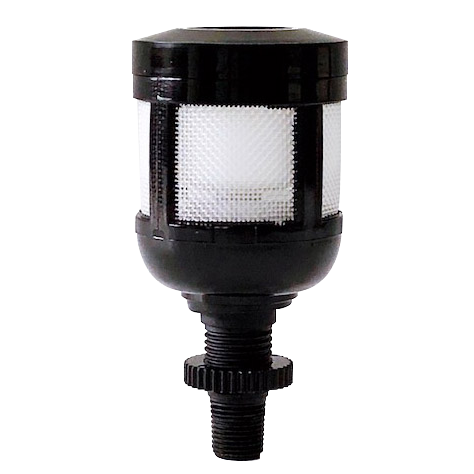

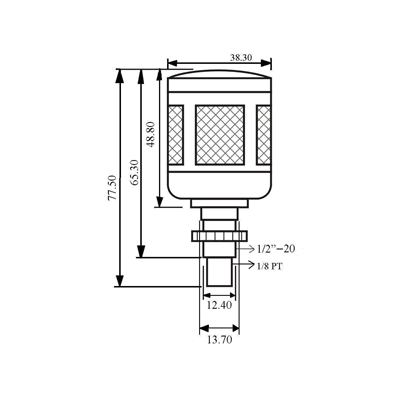

Model : CHG-402B

Size : H48mm x W38.5mm
Fit for : WILKERSON

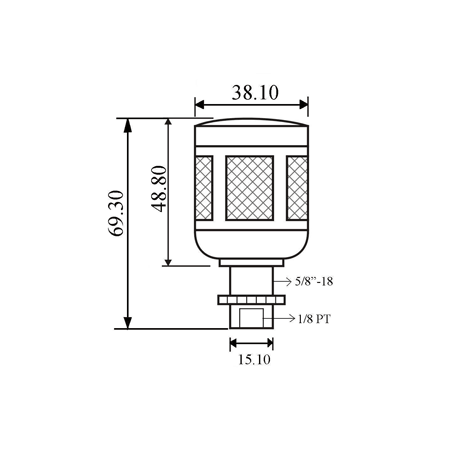

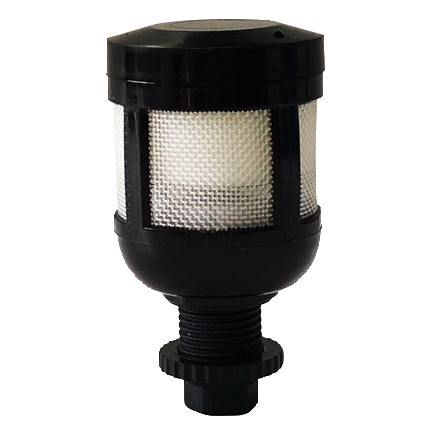

Model : CHG-500B

Size : H48.5mm x W39.0mm
Fit for : NORGREN..PAKER.MP

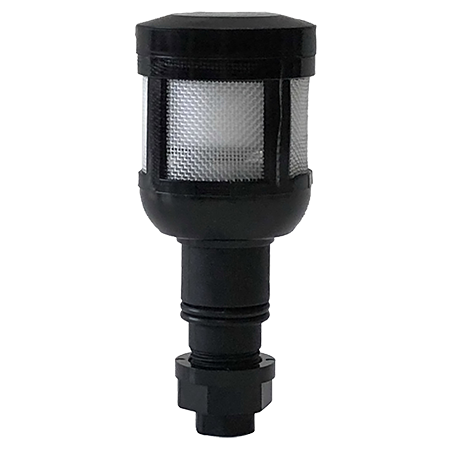

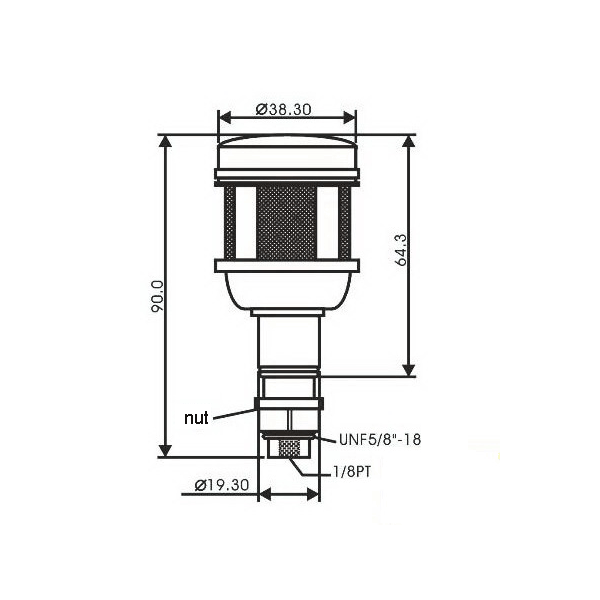

Model : CHG-500BL

Size : H64.3mm x W38.3mm
Fit for : SMC 4000

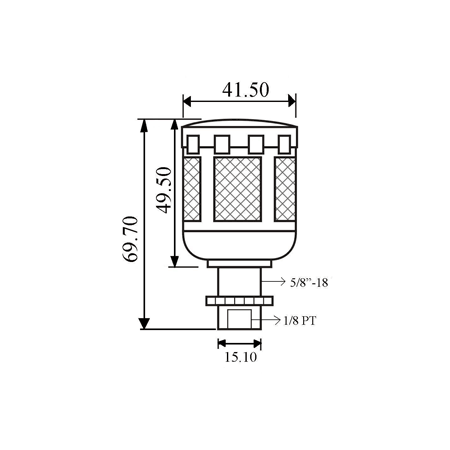

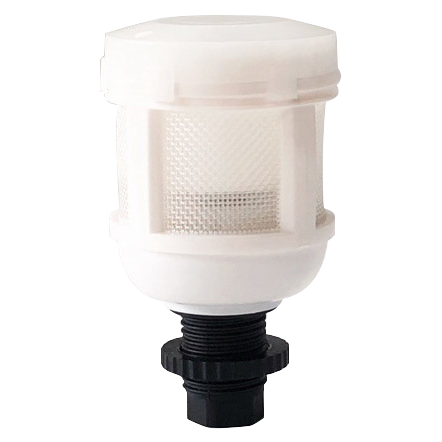

Model : CHG-500W

Size : H49.5mm x W41mm
Fit for: NORGREN, PAKER, MP

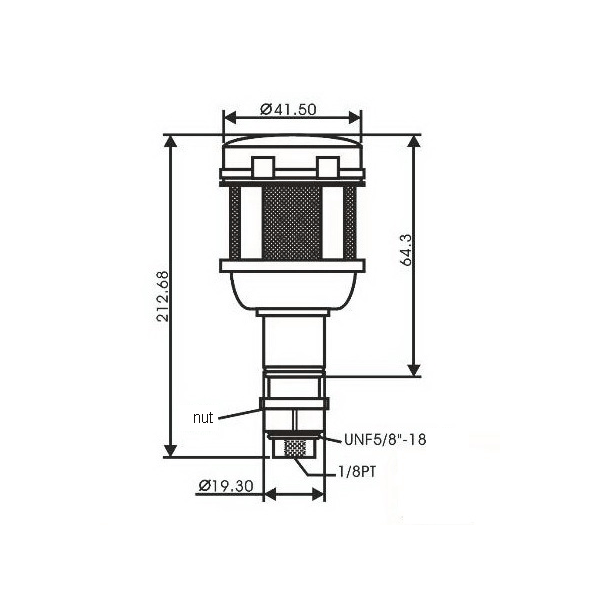

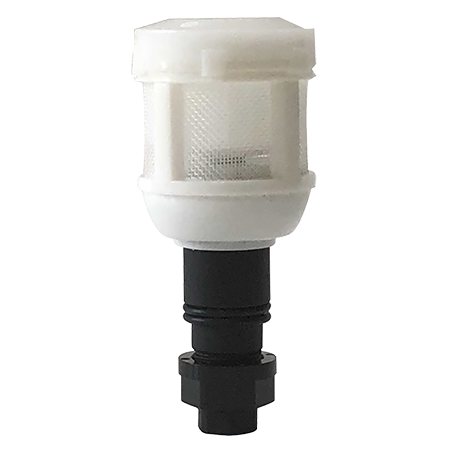

Model : CHG-500WL

Size : H64.8mm x W41.5mm
Fit for : SMC 4000

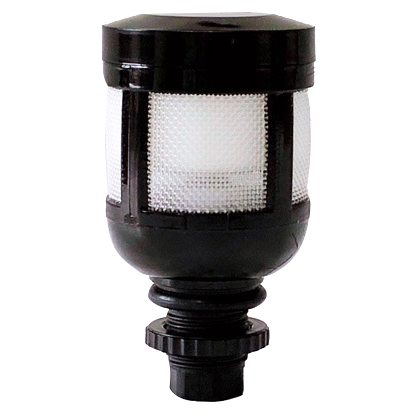

Model : CHG-501B

Size : H48.5mm x W39.0mm
Fit for : KOGANEI

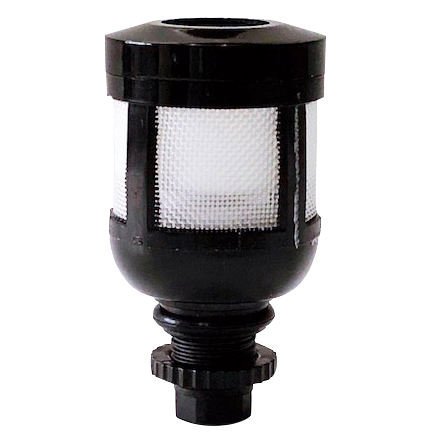

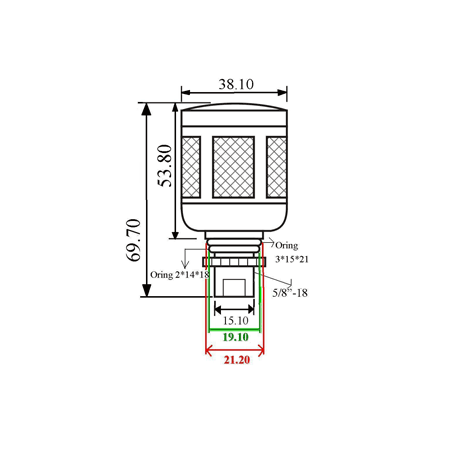

Model : CHG-502B

Size : H53.0mm x W39.0mm
Fit for : TAIYO

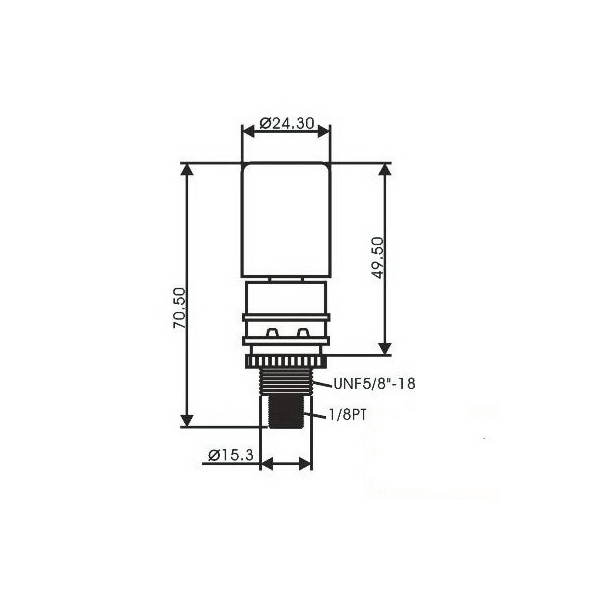

Model : CHG-600A

Size : H49.5mm x W24.3mm
Fit for : NORGREN 4000-50R

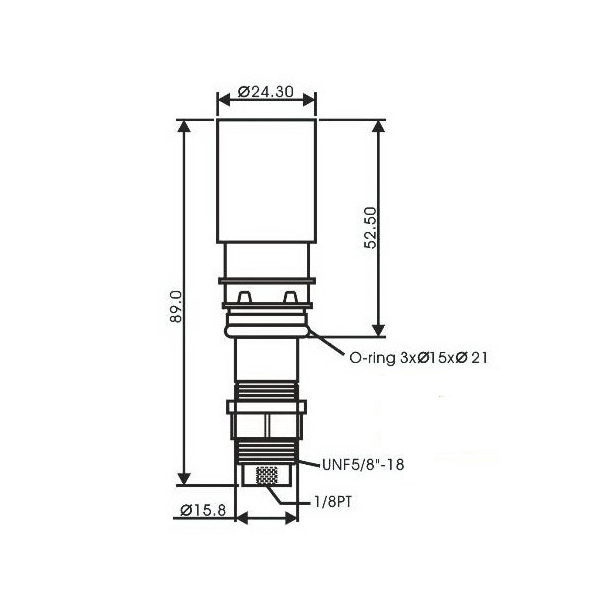

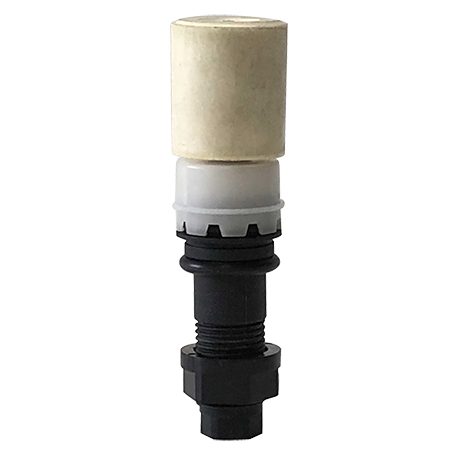

Model : CHG-600B

Size : H52.5mm x W24.3mm
Fit for : FOWARD
