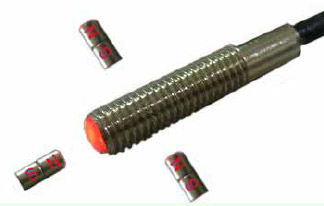

MS - M5R |
MS - M5N |
MS - M5P |
| Wiring |
2
Wire |
3
Wire |
| Connect
Diagram |
 |
 |
|
| Switching
logic |
Normally
open |
Solid
state output, Normally open |
| Output |
Reed
switch |
NPN
Sinking |
PNP
Sourcing |
| Lead
wire type |
Horizontal |
| Load
voltage |
5
~ 120V DC/AC |
5~28V
DC |
| Load
current |
100mA Max. |
200mA Max. |
| Switching rating |
10W Max. |
6W Max |
| Current
consumption |
-- |
20mA Max. @ 24V |
18mA Max. @ 24V |
| Voltage
drop |
2.5V Max. @ 40mA DC |
0.5V Max. @ 200mA (Risistive load) |
| Leakage
current |
--- |
0.01 mA Max. |
| Frequency |
200Hz |
1000Hz |
| Shock |
30G |
50G |
| Vibration |
90 m/s2 (9G),
Double amplitude 1.5 mm |
| Insulation
resistant |
DC
500V 100M Ω (Lead wire to case) |
| Withstand
voltage |
AC 1000V (50/60Hz)
1minute (Lead wire to case) |
| CE
& Protection IP |
EN60947-5-2
IEC529 IP67(NEMA
6) |
| Indicator |
Red LED |
Green LED |
| Cable |
2.8  ,2C,Gray
PVC |
2.8,3C,Black
PVC |
| Temperature
range |
-10 ~ 70 ℃ |
| Protection
circuit |
--- |
Reverse
polarity; Surge suppression |

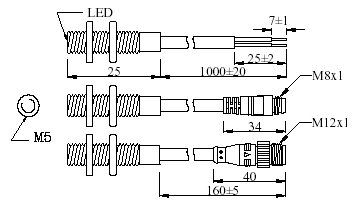

Dimensions
M8
& M12-Connector |
MS-M5R
MS-M5R-M8QD
MS-M5R-M12QD |
MS-M5N
MS-M5N-M8QD
MS-M5N-M12QD |
MS-M5P
MS-M5P-M8QD
MS-M5P-M12QD |
 |
|
| M8 ( 2-Wire QD Link) |
M8 ( 2-Wire E-QD Link) |
M8 ( 3-Wire QD Link) |
M12 ( 3-Wire QD Link) |
 |
 |
 |
 |
|
