* PAB
Clamp |
is designed for mounting
MS-20 & MS-21series sensors on 12¡í ~125¡í
round(tie-rod) cylinder.
PAB-01 : Short clamp
is designed12¡í~63¡í round(tie-rod)cylinder.
PAB-02 : Long clamp is designed12¡í~125¡í round(tie-rod)cylinder.
|
* PBS
Clamp |
is designed for mounting
MS-33 series sensors on 12¡í ~125¡í round(tie-rod)
cylinder
PBS-01 : Short clamp
is designed12¡í~63¡íround(tie-rod)cylinder.
PBS-02 : Long clamp is designed12¡í~125¡í round(tie-rod)cylinder.
|
* PBT
Clamp |
is designed for mounting
MS-03 & MS-15series sensors on 12¡í ~125¡í
round(tie-rod) cylinder
PBT-01 : Short clamp
is designed10¡í~63¡íround(tie-rod)cylinder.
PBT-02 : Long clamp is designed10¡í~125¡íround(tie-rod)cylinder.
|
|
|
Step
1 |
Start by keeping screw
3 to 4 turns into barrel nut on the
end of the band assembly. |
|
Step
2 |
Place the screw head
into clamp slot and wrap the band around
the cylinder, Position the pin with
the nearest hole on the band and mark
the hole with a permanent marker. |
|
Step
3 |
Remove clamp assembly
from the cylinder.
Locate the marked hole that fits to
thecylinder size, cut the band at midway
between the next two adjacent hole. |
|
Step
4 |
Insert cut of the
band into a flat slot opposite from
the clamp slot. Place the chosen hole
over the pin and bend the band firmly
down with thumb pressure.
Then wrap the band around cylinder barrel
and re-insert screw head into clamp.
Position the switch and tighten. |
|
![](image/mounting_01.gif) |
![](image/mounting_02.gif) |
![](image/mounting_03.gif) |
Do not over tighten.
Damage to the switch and/or cylinder
may occur. |
![](image/mounting_04.gif) |
|
![](image/mounting_05.gif) |
![](image/mounting_06.gif) |
*
PAB Clamp |
|
![](image/mounting_07.gif) |
*
PBS Clamp |
|
![](image/mounting_08.gif) |
*
PBT Clamp |
|
|
|
|
* PBK
Clamp |
is designed for mounting
MS-03& MS-15 series sensors on 6¡í ~ 63¡í
round(tie-rod) cylinder.
PBK-01 : Short clamp
is designed 6 ¡í~ 40 ¡íround(tie-rod)cylinder.
PBK-02 : Long clamp is designed 6 ¡í~ 63 ¡íround(tie-rod)cylinder.
|
|
|
![](image/mounting_09.gif) |
Step
1 |
Lossen screw &
nut. |
|
Step
2 |
Place sensor &
wrap the band around the cylinder, Position
the hook with the nearest hole on the
band and mark the hole with a permanent
marker. |
|
Step
3 |
Remove mounting assembly.
Cut the band at the nearest edge of
next hole. |
|
Step
4 |
Re-place the sensor
& mounting assembly. Wrap the band
& put the chosen hole on hook.
Position the switch and tighten. Fially
swivel nut for steadying. |
|
![](image/mounting_10.gif) |
![](image/mounting_11.gif) |
![](image/mounting_12.gif) |
![](image/mounting_13.gif) |
![](image/mounting_14.gif) |
Do not over tighten.
Damage to the switch and/or cylinder
may occur. |
|
|
|
* PAC
Bracket |
is designed
for mounting MS-20 & MS-21 series sensors
on tie-rod cylinder. |
|
|
Applicably
to : 32¡í ~ 125¡í Rod Cylinder(Tie-rod) |
Tie-rod
: 5¡í ~ 12¡í |
|
|
|
|

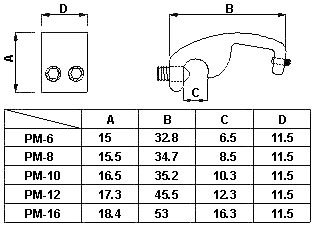

* PM Bracket
|
is designed
for mounting MS-20 & MS-21 series sensors
on tie-rod cylinder. |
|
|
|

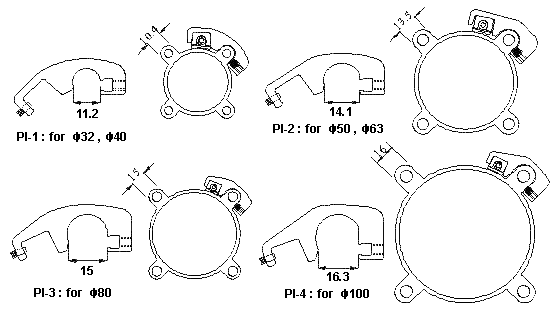

* PI Bracket
|
is designed
for mounting MS-20 & MS-21 series sensors
on ISO cylinder. |
|
|
Applicably
to : 32¡í ~ 100¡í ISO Cylinder |
|
|
|
* PC Bracket
|
is designed
for mounting MS-03 & MS-15 series sensors
on ORIGA cylinder. |
|
|
