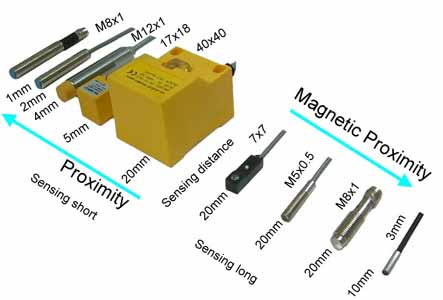

VIIRA All-in-one Magnetic Proximity
Sensor can totally replace traditional inductive models.
| All
In One - Magnetic Proximity Sensor |
Traditional
Inductive Proximity Sensor |
| Multifunction.
Low storage rate. |
Single
function. High storage rate. |

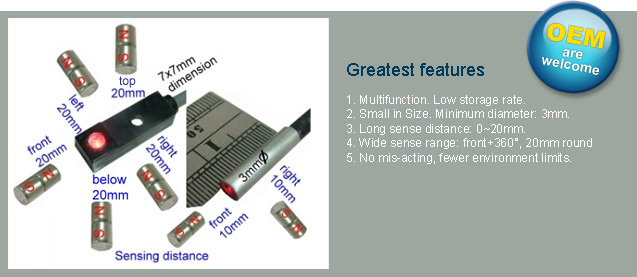

| Small in
Size. Minimum diameter: 3mm. |
Takes a 30mm size to reach
the sense distance of 20 mm |
| Long sense
distance: 0~20mm. |
Short
sense distance. |
| Wide sense
range: front+360¢X, 20mm round. |
One way sensing. Single direction:
front, top, left, right. |
| No mis-acting,
fewer environment limits. |
Occasional
mis-acting. More environment limits. |
| NO./NC.
Two-way. |
Non |
| NPN/PNP Two-way. |
Non |
| DC/AC Two-way,
hermaphroditic, DC/AC5~240V |
Custom order, high price.
|
| Wide range
working voltage. PC/PLC circuit control. |
Narrow
range working voltage. Unsuitable to PC circuit
control. |
| No power
consumption. |
With power consumption. |
| No leakage
current. |
With leakage current. |
| |
Note:
Inductive Proximity Sensor for Square type and Screw
type |
