2
wire switches connection |
MS-01R |
MS-02R |
MS-03R |
MS-06R |
MS-07R |
MS-10R |
MS-11R |
MS-12R |
MS-15R |
MS-16R |
MS-20R |
MS-21R |
MS-30R |
MS-31R |
MS-32R |
MS-33R |
MS-40R |
MS-50R |
MS-72R |
MS-76R |
|
|
กด
General connection |
![](image/connection_01.gif) |
กด
Series connection (And) |
![](image/connection_02.gif) |
กด
Parallel connection(OR) |
![](image/connection_03.gif) |
|

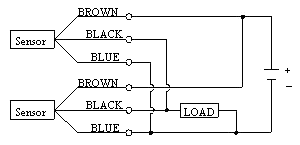

3
wire PNP connection |
MS-01P |
MS-02P |
MS-03P |
MS-06P |
MS-07P |
MS-10P |
MS-11P |
MS-12P |
MS-15P |
MS-16P |
MS-20P |
MS-21P |
MS-30P |
MS-31P |
MS-32P |
MS-33P |
MS-40P |
MS-50P |
MS-72P |
MS-76P |
|
|
![](image/connection_04.gif) |
![](image/connection_05.gif) |
![](image/connection_06.gif) |
|
|
MS-02D |
![](image/connection_07.gif) |
When connecting 2-wire
switches in series (AND),don't exceed more
than two switches due to the internal voltage
drop (Typical V drop=2.5~4V per witch).Excessive
Voltage will cause non-operation of the load. |
|
- When connecting non-contact
2-wire switches in arallel(OR),leakage
current will increase and cause improper
load operation.
- When connecting 2-wire
reed switches in parallel(OR), possible
concurrent operation will cause dim LED
illumination due to lower current distribution.
|
|
3 wire NPN connection |
MS-01N |
MS-02N |
MS-03N |
MS-06N |
MS-07N |
MS-10N |
MS-11N |
MS-12N |
MS-15N |
MS-16N |
MS-20N |
MS-21N |
MS-30N |
MS-31N |
MS-32N |
MS-33N |
MS-40N |
MS-50N |
MS-72N |
MS-76N |
|
|
กด
General connection |
![](image/connection_07.gif) |
กด
Series connection (And) |
![](image/connection_08.gif) |
กด

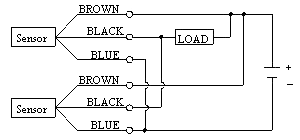

Parallel connection(OR) |
![](image/connection_09.gif) |
|
